Acrylic Aquarium Repair & Buffing - 250Gal Example

Discussion in 'DIY Projects and Ideas' started by Tongue33, Dec 6, 2006.

  1. Tongue33

    Tongue33
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Feb 11, 2006
    Messages:
    8,050
    Likes Received:
    3
    Trophy Points:
    0
    Occupation:
    Warehouse Lead
    Location:
    Utah
    Home Page:
    Last Seen:
    Jul 1, 2012
    Repairing My 250 Acrylic..

    --------------------------------------------------------------------------------

    Well

    I DIY'd my repairs on my newest addition to the tank family. MY 250 I repaired with the advice of a Leading and tenured acrylic frabrication company.. here in Utah
    And an Extra Special Thanks to MY Beautiful Wife Marissa for her patience and help in this project :) She's done most the work on the stand ...:) You remeber her:D

    Also a special thanks to Oddball and Rallysman for their knowledge and experience!! ANd answering their PM's :)

    At first the task was said to be not worth it and that I should just replace the tank? Now it is almost ready to enter the house. It holds water beautifully and is in the finishing stages ..

    Process

    1- I used weld on #3 to pull the separation of the front bottom and walls together.

    2-I then did it again and again.. Like 3 days of this ..

    3-Cut my patches (to cover the cracks that I fixed as well as the separation just incase.)

    4-I mixed up the Weldon #40 as Directed

    5- I finished filling with Weldon 40 the separation

    6-I immediately added a nice coat of Weldon 40 to about 4? of the bottom, thus covering the base and the bottom of the face wall..

    7-Immediately after.. I placed the first patch.

    8-then completed step 6 on other half of face..

    9-Completed step 8 for other half..

    10-Placed to small patches on both sides to act as a 3 corner brace for the front (just in case)

    11-let dry and then sanded down to flush

    12-1.5 days later I filled it.

    13-a week later (this morning) I drained it..

    Now I am going to refinish it and build my stand and filter system :)

    The Lead tech at of the acrylic company approved with amazing delight when I told him how I would perform this. And said it would be as strong as if it were new or stronger.. His main concern was vanity :) .. But after I explained my full plan and that the patches would either be barely or not visible at all ? He then was overly excited in telling me it would work:)

    Sorry no Pictures as it was my first time and I was not really thinking .. Plus when working with Weldon # 40 you do not have more than a couple of seconds to get it done and get it done RIGHT!! So written will have to do :)

    Next phase in next DIY will be my experience for the next couple days of wet sand and polishing scratches out :) they are not an issue but I don?t want to take any chances where pictures are concerned :) I would be very angry if it was cause I didn?t take the time to finish everything before moving this awesome tank into my house and placing my Monsters in it :D

    Joey G.

    P.S. I almost blew myself up with the weldon!! Do not I REPEAT DO NOT MIX IT WITH WELDON #3 :ROFL:


    DIY Repairs and refinish of acrylic tank 9/13/2006

    Well today I did all the WET SANDING

    Tools

    >Wet/Dry sand Paper 1000/2500 or higher grit

    >Rag for wipe rinsing or Ring rinse

    >Small pale of water

    >An hour or 3 depending on how much sanding you?ll be doing..

    1-I got a 2 or 3 gallon bucket of water and utilized as well the water that was still in the bottom of the tank..

    2-Dropped a 1000 grit and a 2500 grit in the water and let sit ..

    3-After a few minutes I wet the inside face of the tank down and started with the 1000 grit

    4-Sand section Rinse?. Sand? Rinse sand rinse? Suggestion.. As to make buffing easier and less swirl scratching sand back and forth.. Not wax on and off?

    5-It is good to have a rag in your bucket for rinsing purposes.

    6-completed with the 1000

    7-Went over in the same process with the 2500 grit

    8-Buffed a small area to see how well it worked

    09/13/2006

    Tomorrows chore BUFFING ACRYLIC

    Buffing acrylic?

    Completed 09/19/2006

    Tools..

    >Buffing kit from acrylic co.
    -Comes with compound.

    >Drill

    >Arbor for buffing kit

    >Time and Patience!!

    >Research!!

    Well this took me around 4 total days to complete. And I?ll tell you what.. I now dislike compound and refuse to use it again til I see it done by a pro?

    I started and within 5 minutes I decided I was going to give it a whirl without the compound to a point as I changed the color of my tank? LOL .

    Anyway if you haven?t done this the key seems to be ? Keep the wheel moving or you?ll get to re-sand areas !! Acrylic melts under even cotton wheel !!!

    I started at one side of the face of my tank and worked my way to the other side.. This was done in all manner of motion. I have a limited attention span and not only get a little antsy but angry when I have to take more time than what ?I? think to complete something.. But mainly I went in an up and down motion or a circular motion with wheel turning against or with the sanding scratches not cross ways as such +? I don?t remember now and a couple of times it could have went one way or the other? I would suggest going one way the hole time.. I believe the best results are with the drill in ?forward?. I worked my way in squares.. DO NOT USE ANYTHING FASTER THAN A DRILL with this kit... I got 2 bad little deals within 2 seconds of hooking up the cotton wheel to my grinder ... As stated below.

    I ended up with two blemishes that I was unwilling to go back over.. Looks pretty good to me. And the tank was mighty clear when I filled it before I buffed it. So it should look awesome when I get it filled.

    Here are pics in order somewhat :)

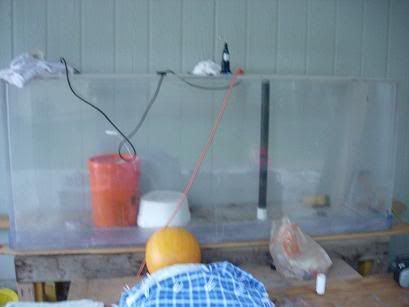

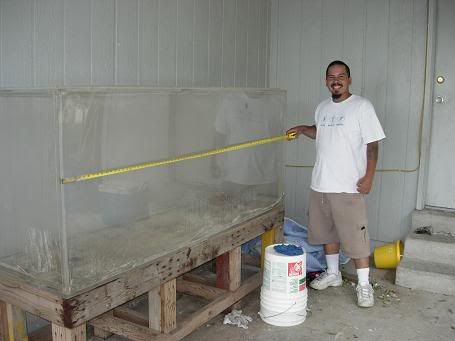

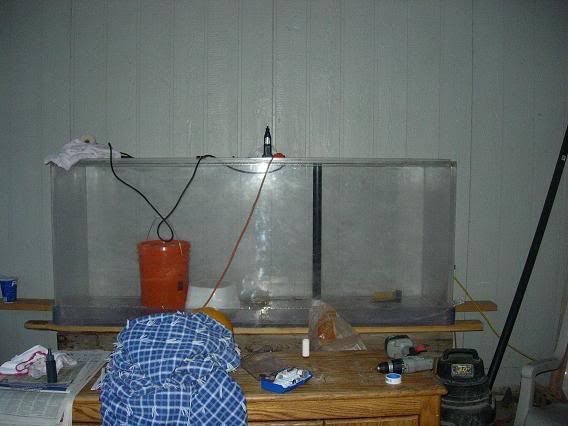

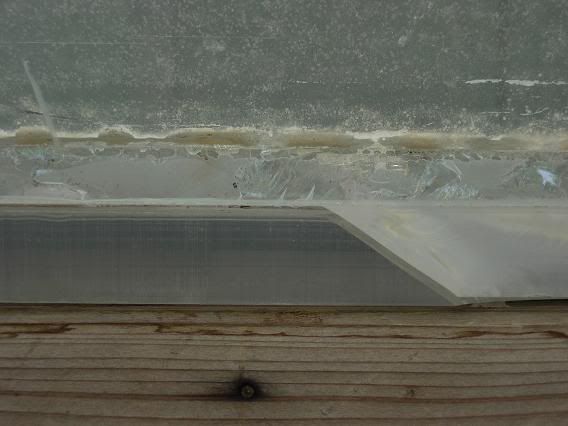

    In the beginning /Before Pics
    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    After

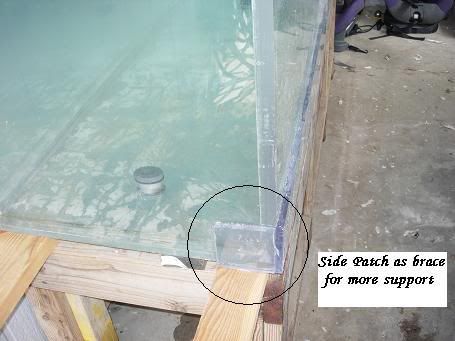

    Brace For extra support
    [​IMG]

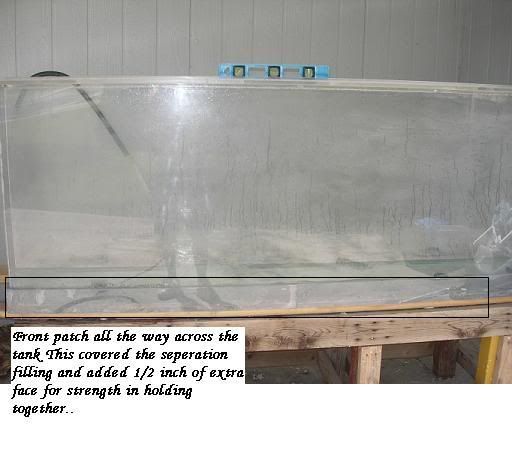

    Cover patch
    [​IMG]

    [​IMG]

    [​IMG]

    Before buffing

    [​IMG]

    [​IMG]

    [​IMG]

    After buffing

    [​IMG]

    [​IMG]

    Picture for clarity of tank after filling :)

    [​IMG]

    So what do ya think ?


    Joey G.

    Collapse Signature Expand Signature
  2. eh1421

    eh1421
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Dec 14, 2005
    Messages:
    1,206
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    *indiana*
    Last Seen:
    Dec 28, 2013
    nice read and great work saving the tank bro
    mike

    Collapse Signature Expand Signature
  3. Joshy

    Joshy
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Nov 4, 2006
    Messages:
    856
    Likes Received:
    1
    Trophy Points:
    0
    Occupation:
    Student (Shop Assistant at Millie's Cookies)
    Location:
    Essex, England
    Home Page:
    Last Seen:
    Jan 14, 2009
    Good recovery and restoration work there.
    Good and informative article.

  4. Tongue33

    Tongue33
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Feb 11, 2006
    Messages:
    8,050
    Likes Received:
    3
    Trophy Points:
    0
    Occupation:
    Warehouse Lead
    Location:
    Utah
    Home Page:
    Last Seen:
    Jul 1, 2012
    Thanks !1 This has been probably the most researched thing i've done in the hobby well the most detailed :)

    Collapse Signature Expand Signature
  5. Gr8KarmaSF

    Gr8KarmaSF
    Expand Collapse
    Administrator

    Real Name:
    Joined:
    Jul 23, 2005
    Messages:
    23,223
    Likes Received:
    24
    Trophy Points:
    89
    Location:
    Quarantine Tank
    Last Seen:
    Thursday at 6:41 PM
    SWEET!!!

    very inspiring...

    Collapse Signature Expand Signature
  6. Oddball

    Oddball
    Expand Collapse
    Administrator
    Staff Member

    Real Name:
    If there's BBQ, I'll answer to any name
    Joined:
    Apr 27, 2005
    Messages:
    21,201
    Likes Received:
    468
    Trophy Points:
    9,393
    Gender:
    Male
    Occupation:
    Process Control Engineer; Hatchery Owner/Operator
    Location:
    Bama
    Last Seen:
    Today at 10:23 AM
    ..


    Collapse Signature Expand Signature
  7. Oddball

    Oddball
    Expand Collapse
    Administrator
    Staff Member

    Real Name:
    If there's BBQ, I'll answer to any name
    Joined:
    Apr 27, 2005
    Messages:
    21,201
    Likes Received:
    468
    Trophy Points:
    9,393
    Gender:
    Male
    Occupation:
    Process Control Engineer; Hatchery Owner/Operator
    Location:
    Bama
    Last Seen:
    Today at 10:23 AM
    Can you even tell where it was damaged??! I sure can't. Superb effort of restoration.







    Collapse Signature Expand Signature
  8. Tongue33

    Tongue33
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Feb 11, 2006
    Messages:
    8,050
    Likes Received:
    3
    Trophy Points:
    0
    Occupation:
    Warehouse Lead
    Location:
    Utah
    Home Page:
    Last Seen:
    Jul 1, 2012
    Thanks for all your Help Oddball!!! Your a PIMP!!

    Collapse Signature Expand Signature
  9. RadleyMiller

    RadleyMiller
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Aug 15, 2006
    Messages:
    2,589
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    PetSmart and a Zoo
    Location:
    Delaware
    Home Page:
    Last Seen:
    Oct 13, 2008
    Congrats! Great job, what's going in the tank?

    Collapse Signature Expand Signature
  10. Carg R

    Carg R
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    May 7, 2006
    Messages:
    268
    Likes Received:
    0
    Trophy Points:
    0
    Occupation:
    auto body estimator
    Location:
    Texas
    Last Seen:
    Jan 9, 2014
    Very well done Joey, I need to come over and see it in person.

    And look, your diy is a sticky!!!
