DIY : 24/7 New Water Drip System

Discussion in 'MFK Articles' started by neoprodigy, Mar 15, 2006.

  1. neoprodigy

    neoprodigy
    Expand Collapse
    Administrator
    Staff Member

    Real Name:
    Li
    Joined:
    Jun 12, 2006
    Messages:
    14,741
    Likes Received:
    103
    Trophy Points:
    2,115
    Location:
    Washington DC
    Last Seen:
    Friday at 8:45 PM
    Water Changes... do you love doing them? Well I'm tired of the doing water changes every other day on 18+ tanks...

    The 24/7 drip system is a constant drip of "new" water and any excess water will overflow out the tank through the drains. Similar to a Overflow filter except it has a much slower flow rate.

    Here's how my system works:

    Water -> (filter) -> Aged water Barrel -> Tank -> Overflow -> drain/sink/lawn

    ----- Aged Water Barrel----

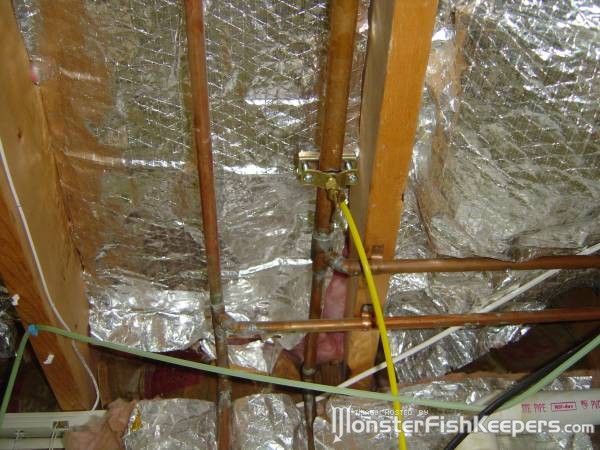

    I tap into the cold water pipe

    [​IMG]

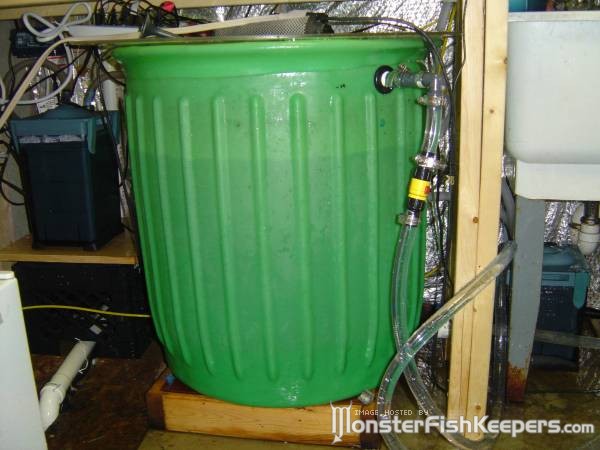

    the aged water barrel

    [​IMG]

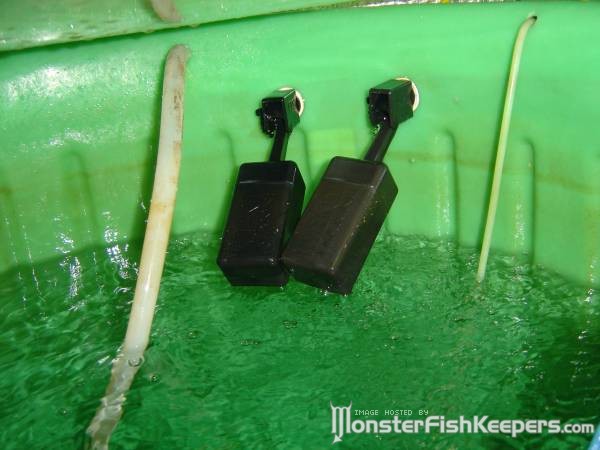

    you have to get Float Valve!! or your place will be flooded!

    [​IMG]

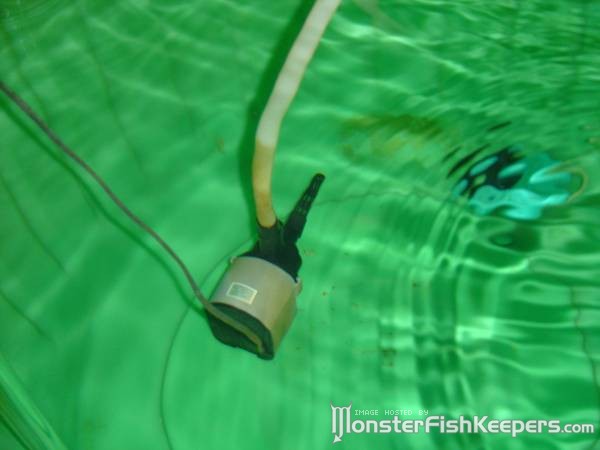

    the pump that pumps water into tanks

    [​IMG]

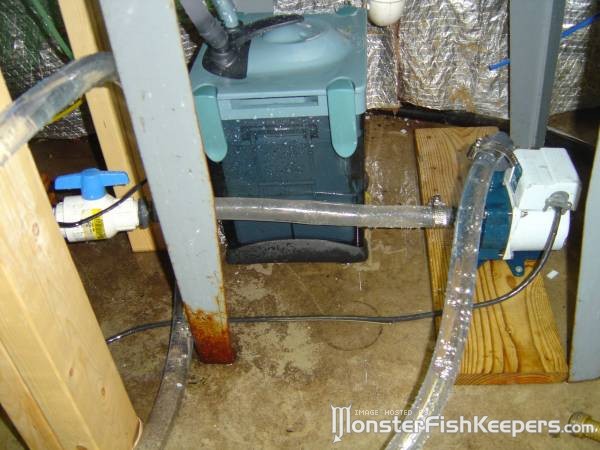

    to age the water you must aerate the water 24/7

    I have an air stone in the barrel but I didn't think it was enough, so Ii added a pump to circulate the water even more.

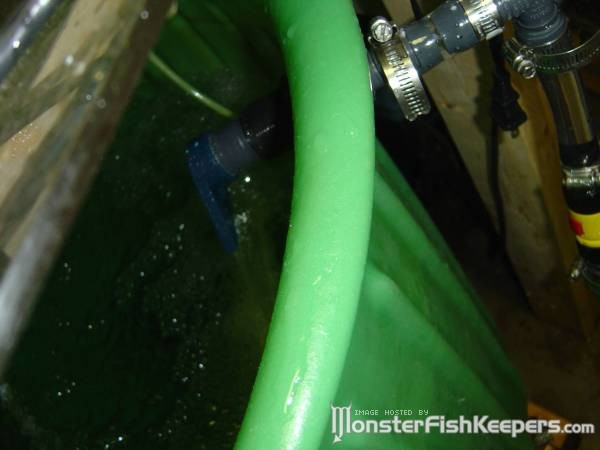

    [​IMG]

    circulated back in to the barrel.

    [​IMG]

    Spray bar helps spread the water around

    [​IMG]

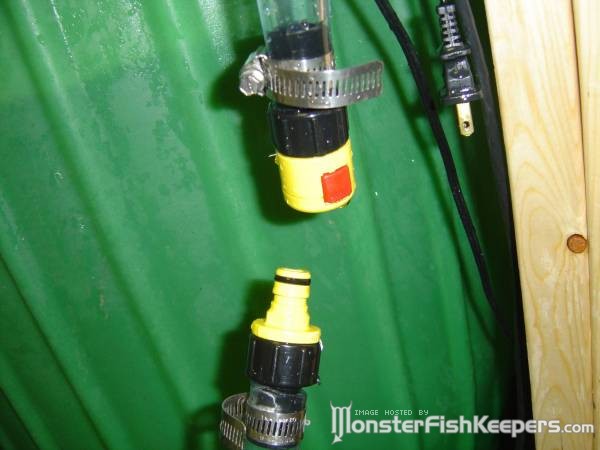

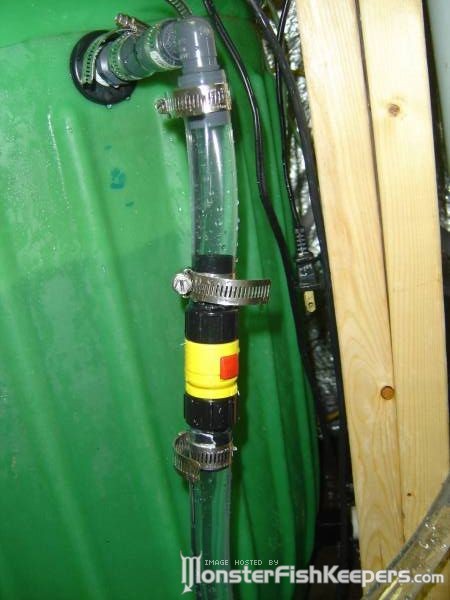

    you see the yellow quick disconnect ? why the quick disconnect?
    It's just incase I need to do a quick water change :D

    [​IMG]


    ----- DRILL TANK----

    [​IMG]

    if you want the water level to be higher, all you have to do is add an extention to allow the water level to rise.

    [​IMG]

    ----- NON DRILL TANK----

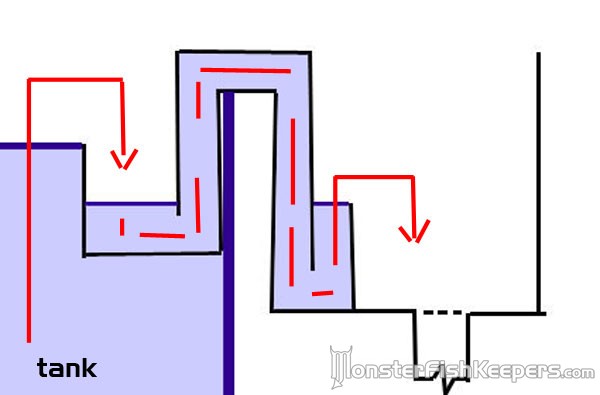

    here is how the overflow works

    [​IMG]

    here is a DIY version its much cheaper and works the same way

    [​IMG]


    ----- How to build a Neoprodigy DIY overflow----

    Im using a 1-1/4 pvc pipe

    [​IMG]

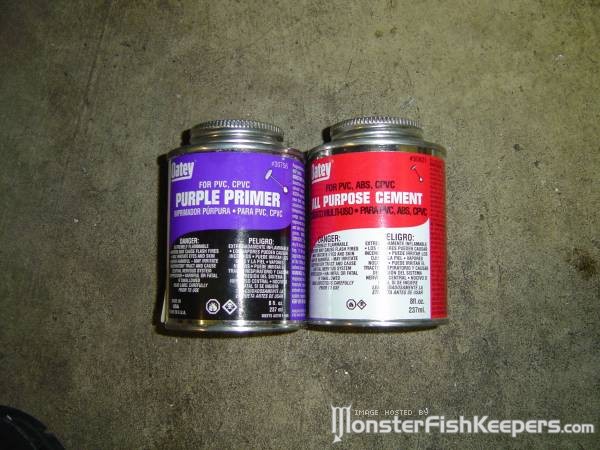

    PVC primer and cement

    [​IMG]

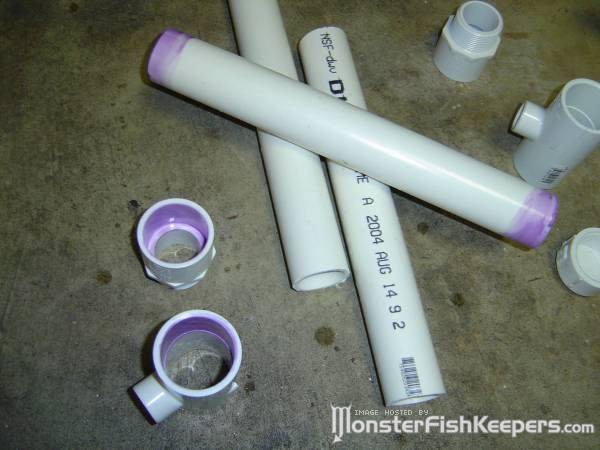

    primer the ends

    [​IMG]

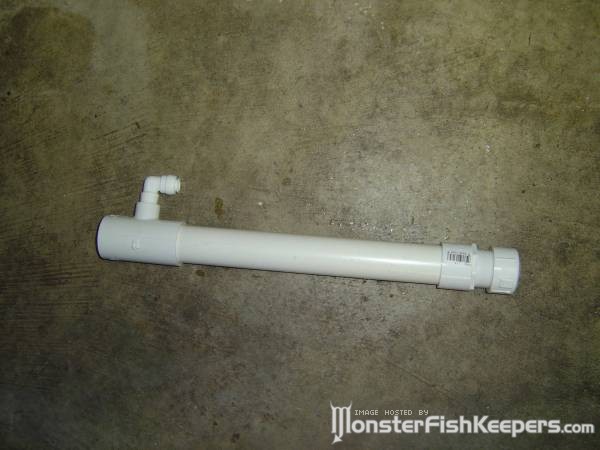

    when its all cemented

    [​IMG]


    ----- installing the drip----

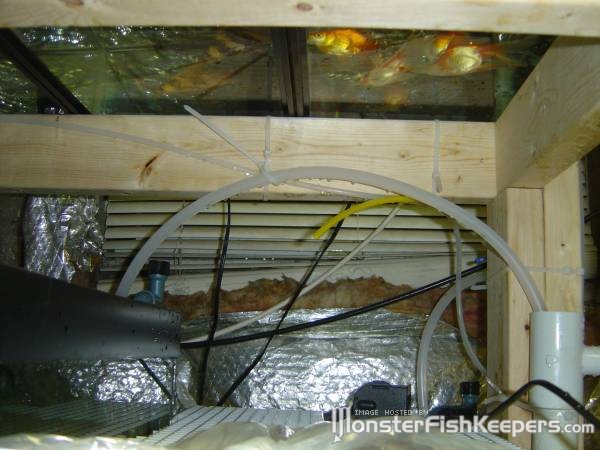

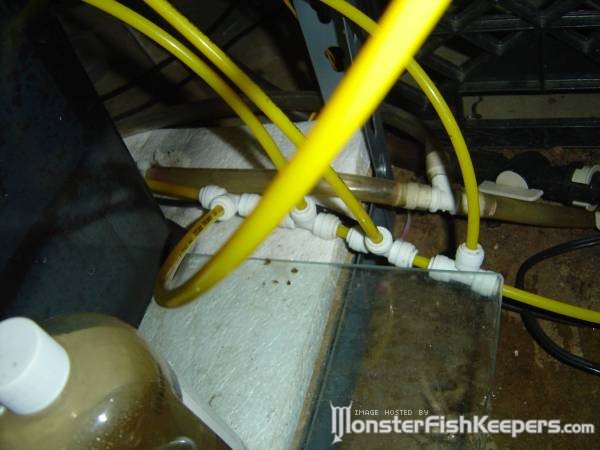

    New water to the tanks

    [​IMG]

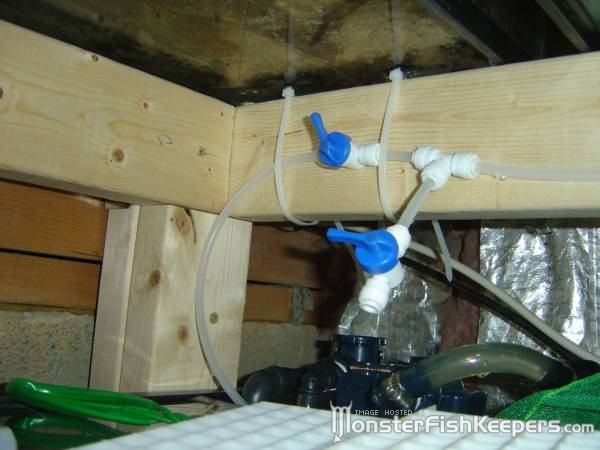

    the flow valve

    [​IMG]

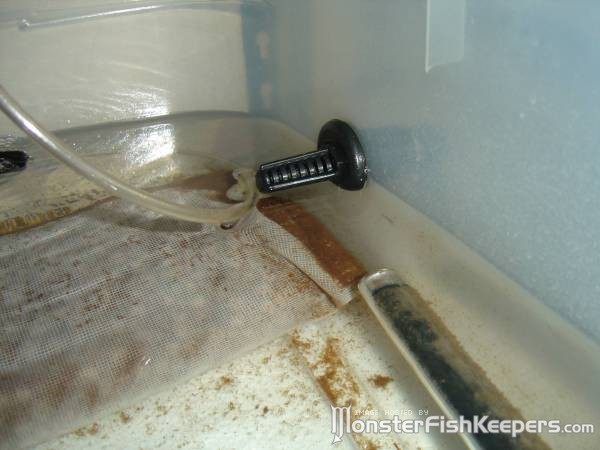

    the drip

    [​IMG]

    ----- install the over flow----

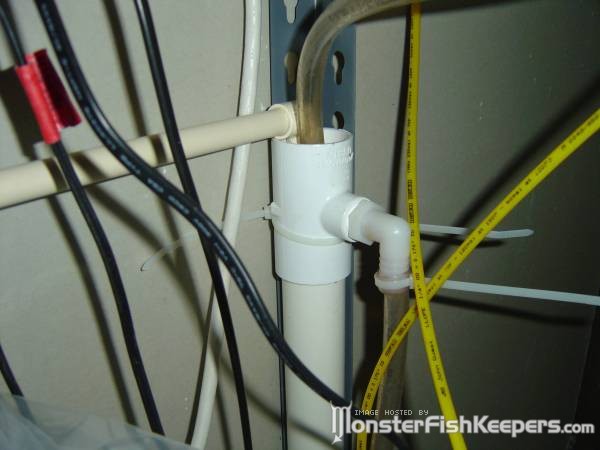

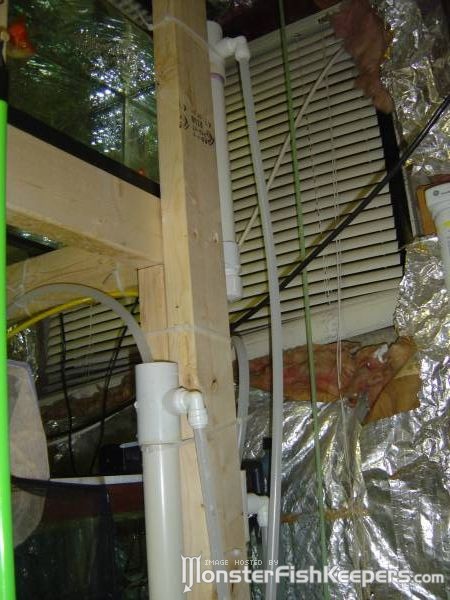

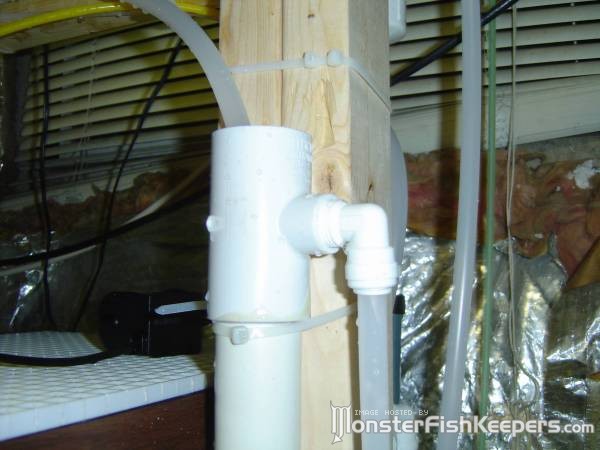

    I use zip ties to secure it to the pole

    [​IMG]

    [​IMG]

    [​IMG]

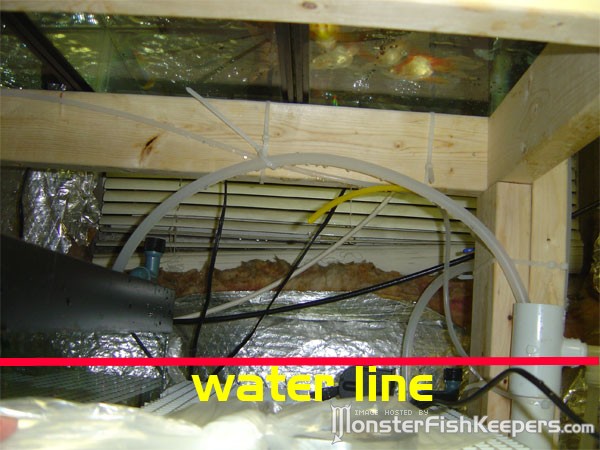

    make sure you line the water line correctly

    [​IMG]

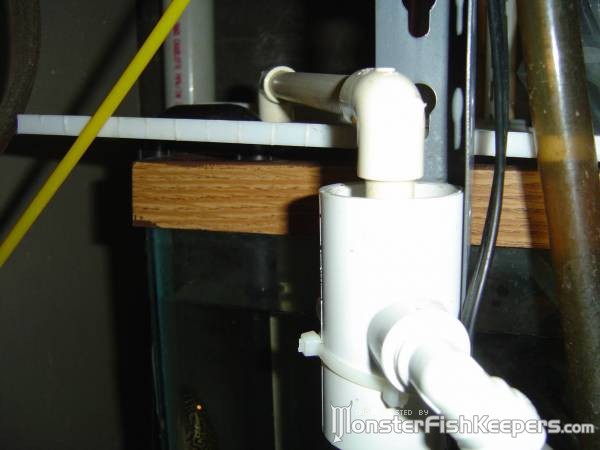

    you see the vinyl pipe from the tank to the overflow?

    [​IMG]

    if you have time you can use pvc piping instead

    [​IMG]

    [​IMG]

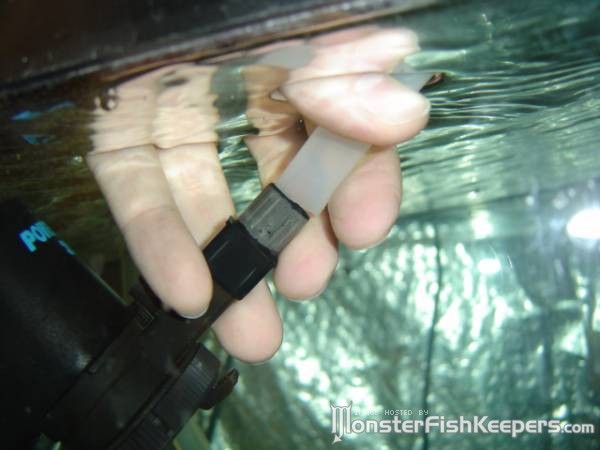

    to start the siphon process I use a pump to quick start it. Pump the water until it starts to flow out of the tube.

    [​IMG]

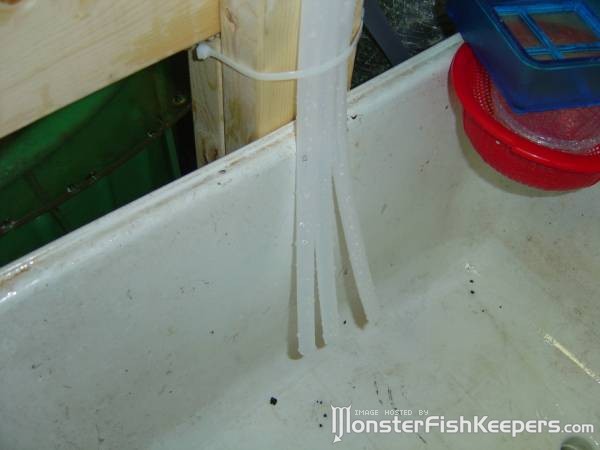

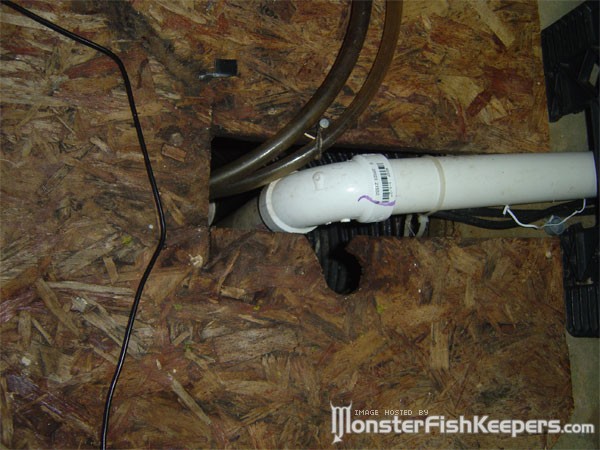

    This Setup Drains to the Sink

    [​IMG]

    My other setup is set to drain to the AC draining system

    [​IMG]

    UPDATE : For Chloramine water.. check this setup

    24/7 New Water changer (chemical Way)

    Collapse Signature Expand Signature
  2. Nic

    Nic
    Expand Collapse
    MFK Members

    Real Name:
    Nic
    Joined:
    Oct 8, 2005
    Messages:
    15,793
    Likes Received:
    2
    Trophy Points:
    38
    Occupation:
    Love it!!!!
    Location:
    outside philly
    Last Seen:
    Oct 2, 2015
    looks very good neo thank you for sharing im gonna put one in the works for my tanks very soon

    Collapse Signature Expand Signature
  3. joel

    joel
    Expand Collapse
    MFK Members

    Real Name:
    Joel
    Joined:
    Jul 14, 2005
    Messages:
    2,345
    Likes Received:
    33
    Trophy Points:
    51
    Gender:
    Male
    Occupation:
    healthcare
    Location:
    THE GARDEN STATE
    Last Seen:
    Yesterday at 11:35 PM
    that is some setup

  4. FishHeadSoup

    FishHeadSoup
    Expand Collapse
    Guest

    Last Seen:
    A moment ago
    SWEET setup Neo, wish i could hire somebody to do this in my house!

    anybody know anybody that does this in Cali? PM me!

  5. Fish_are_fishfood

    Fish_are_fishfood
    Expand Collapse
    Sea Robin

    Real Name:
    Joined:
    Aug 21, 2005
    Messages:
    1,035
    Likes Received:
    0
    Trophy Points:
    36
    Location:
    why do you want to know?
    Last Seen:
    Jan 20, 2016
    :jaw: :jaw: You are an aquarium drip system genius, or shoud I say prodigy :headbang2 Now just come over to my house and make one for me :D

    Collapse Signature Expand Signature
  6. neoprodigy

    neoprodigy
    Expand Collapse
    Administrator
    Staff Member

    Real Name:
    Li
    Joined:
    Jun 12, 2006
    Messages:
    14,741
    Likes Received:
    103
    Trophy Points:
    2,115
    Location:
    Washington DC
    Last Seen:
    Friday at 8:45 PM
    if you shoot a video of your location of your tank.. i probally let you know how you can set the say way

    Collapse Signature Expand Signature
  7. DeLgAdO

    DeLgAdO
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Jun 1, 2005
    Messages:
    9,568
    Likes Received:
    2
    Trophy Points:
    0
    Occupation:
    college Student
    Location:
    Chula Vista, CA (San Diego)
    Home Page:
    Last Seen:
    Nov 4, 2011
    bravo Li!! :clap :clap :clap

    how much water do you drip?(gph?)

  8. DeLgAdO

    DeLgAdO
    Expand Collapse
    MFK Members

    Real Name:
    Joined:
    Jun 1, 2005
    Messages:
    9,568
    Likes Received:
    2
    Trophy Points:
    0
    Occupation:
    college Student
    Location:
    Chula Vista, CA (San Diego)
    Home Page:
    Last Seen:
    Nov 4, 2011
    hey whats purple primer do?

  9. neoprodigy

    neoprodigy
    Expand Collapse
    Administrator
    Staff Member

    Real Name:
    Li
    Joined:
    Jun 12, 2006
    Messages:
    14,741
    Likes Received:
    103
    Trophy Points:
    2,115
    Location:
    Washington DC
    Last Seen:
    Friday at 8:45 PM
    primer is to "clean" the pipe...

    Collapse Signature Expand Signature
  10. OrnatipinnisBichir

    OrnatipinnisBichir
    Expand Collapse
    Banned

    Real Name:
    Joined:
    Mar 14, 2006
    Messages:
    19
    Likes Received:
    0
    Trophy Points:
    0
    Location:
    USA
    Last Seen:
    Apr 26, 2006
    first time seeing something like that
