4'x8' canopy and light ideas?

thebiggerthebetter

Gold Tier VIP
MFK Member
Dec 31, 2009
10,357
7,046
3,865
Naples, FL, USA
IDK about canopy (what's that?) but this is how I do lids:


If you wanna do it ghetto style like me (I think you should, if you asked me) then get

-- some clear greenhouse plastic film (UV resistant, usually 6 mil thick PE),

-- 2" spring clamps from Home depot for 99 cents to clamp the film to the tank, and

-- $5 aluminum shop lights 8.5" diameter, with Walmart LED daylight bulbs of chosen luminance, which can be placed onto the film or hung right above it.

You could do it for under $50.

$20 if your standards are some of the lowest and you are not afraid to Craigslist... :)

Yeah, almost forgot, hide all this splendor behind a curtain (there, that's your canopy), e.g., made from black, PP woven / compressed, ground water retention fabric, so nobody could copycat it.

Last edited:
  • Like
Reactions: Zanzag

esoxlucius

Redtail Catfish
MFK Member
Dec 30, 2015
1,309
1,973
154
UK

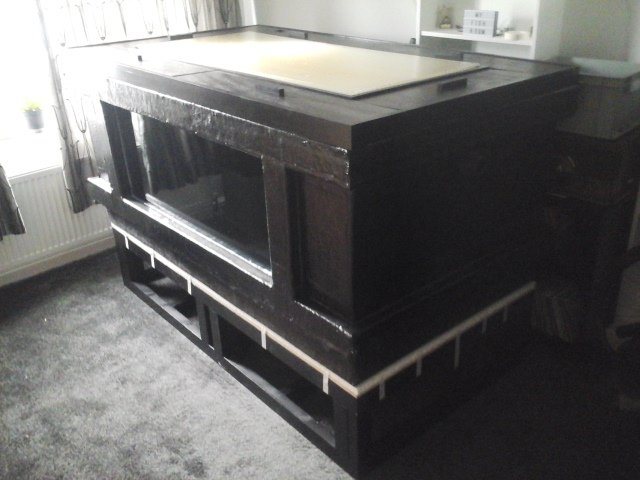

Below is a picture of the finished canopy I built for my 6'x4' fibreglass tank. I built it to last. The framework is 2"x2". There's a removable central polycarbonate sheet and 6 plywood panels, all removable too. The underside has got a triple coat of exterior white paint and the top, as you can see is black.

Since this photo was taken I have put a nicrew led light fitting on top of the polycarbonate sheet and just to give it a finishing touch I build a housing for the light out of ply (with holes in the top to allow heat from the lights to escape). Then I painted the housing black to match the canopy and the actual tank.

You don't even need to be well versed in joinery to do something like this, it was very easy.


  • Like
Reactions: thebiggerthebetter

Guinness

Plecostomus
MFK Member
Dec 5, 2005
320
64
61
39
Oak Lawn IL

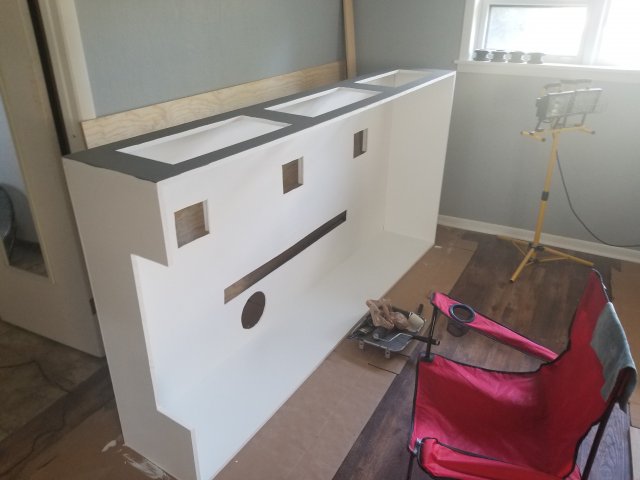

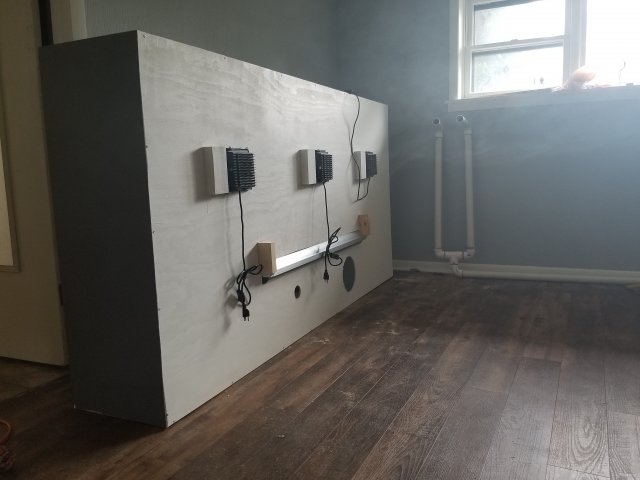

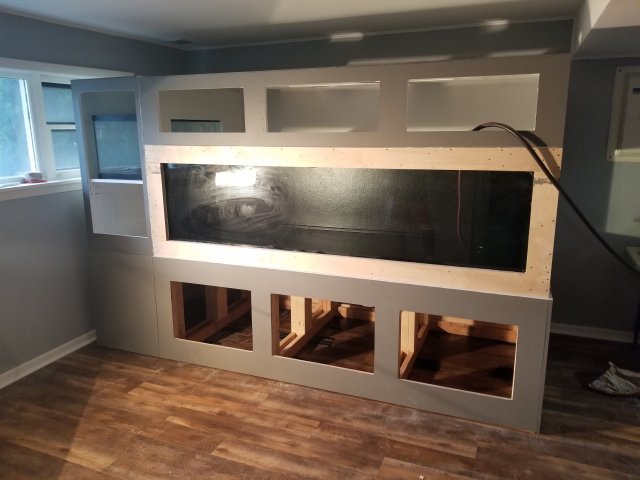

This is 4x8 for my almost done 500 plywood tank. Doors are made but not installed yet. It has 3 x 20 watt led food lights and 1 4 foot t5 uvb for turtles. Sides are 3/4 ply and top is 1/4. There are polycarbonate greenhouse panels covering the tank under the canopy.
