50 watt 120 volt full spectrum led. Needing heat sink.

markstrimaran

Aimara
Original poster
Nov 21, 2015
2,190
986
125
46
iowa
Real Name
mark
Gender
Male
Occupation
retired oilfield diver, welding technician

Going with 4 chips at 200 watts, over a 18 x 48 surface. Thinking of a aluminum 1/2" bar as a heat sink.

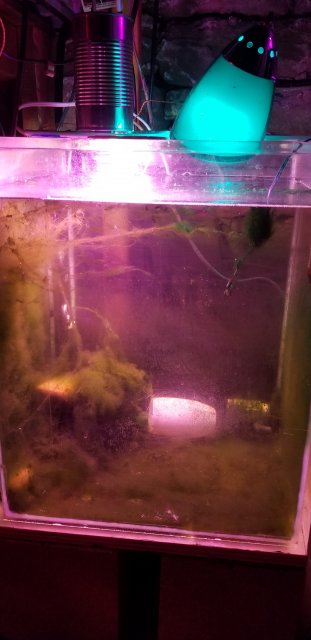

This one lite is cooled with a large magnet and a soup can full of water.

Kind of like to use water to cool, or make the heat sink big enough to be self cooling. I am planning an mixing in some greens to whiten the lights.

Reactions: CarpCharacin

CarpCharacin

Banned
Sep 20, 2014
1,485
526
125
Salt Lake City
Real Name
James Stewart
Gender
Male
Just make sure you use thermal adhesive between the chips and the heatsink, it makes the heatsink cool better by increasing the efficiency of the thermal transfer from the lights to the heatsink.


Tarsun

Exodon
Sep 26, 2018
53
30
21
32
Real Name
Tarsun
Gender
Male
Make sure its adhesive and not thermal paste. The paste works well but you would need to secure the light to the heatsink.
You can pick up computer "tower heat sinks" for cheap on line. It might be a little better than a can of water. lol

The aluminum bar could get heat soaked and not function was good as you'd expect if the chip sets get really hot, which i'm pretty sure they do. You can add a fan to a smaller heat sink or add cooling fins to make it more efficient.

Adding a small aluminum heat sink on top of the aluminum bar above each chipset would help out allot.


markstrimaran

Aimara
Original poster
Nov 21, 2015
2,190
986
125
46
iowa
Real Name
mark
Gender
Male
Occupation
retired oilfield diver, welding technician
Currently useing a .002 " epdm rubber adhesive.

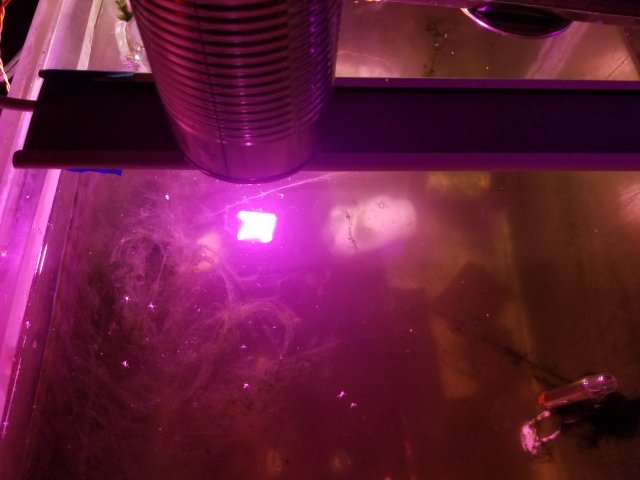

The can sink is my test light to see how hot these 50 watt chips get.

I will probably use 2×1 aluminum tube with the ends plugged, then drip water thru, with the overflow heating the tank.



Tarsun

Exodon
Sep 26, 2018
53
30
21
32
Real Name
Tarsun
Gender
Male
You have to be very careful when you run water in such a close proximity to electronics, especially when every part of the build is conductive.


markstrimaran

Aimara
Original poster
Nov 21, 2015
2,190
986
125
46
iowa
Real Name
mark
Gender
Male
Occupation
retired oilfield diver, welding technician
Thermal adhesive would probably work better than the EPDM adhesive.
I know EPDM is non galvanic with aluminum. Probably not the best but I have it on hand. It's also very heat tolerant. Were some of the others are brittle and will eventually crack and cause a air gap with a glued only connection
You have to be very careful when you run water in such a close proximity to electronics, especially when every part of the build is conductive.
It will be grounded to a GFI , and the connections sealed water proof with EPDM.


CarpCharacin

Banned
Sep 20, 2014
1,485
526
125
Salt Lake City
Real Name
James Stewart
Gender
Male
Thermal adhesive is heat conductive, so it will work more efficiently, and I think most thermal adhesives are non-conductive also.


markstrimaran

Aimara
Original poster
Nov 21, 2015
2,190
986
125
46
iowa
Real Name
mark
Gender
Male
Occupation
retired oilfield diver, welding technician

The led is still going, but it is growing some fluff algea at 50f. Which is too cold for my cichlids.

I will try a sealed 316stainless steel 1" x 2" tube, about 18" long. Filled with water. As the heat sink once I find some scrap.
Might make a tester with mild steel, with the same volume as the can but long and thin.


markstrimaran

Aimara
Original poster
Nov 21, 2015
2,190
986
125
46
iowa
Real Name
mark
Gender
Male
Occupation
retired oilfield diver, welding technician
So far these lights grow only fluff algea. All the long strand has died .

Might make a good candidate for a algea scrubber. But then at 59'F . I don't really know.
