Cinder block stand for 75 gallon tank?

  • We are currently upgrading MFK. thanks! -neo
Concrete blocks are stupidly strong, even if placed the "wrong" way, i.e. with the open voids visible from the sides. I always use them that way and utilize the voids as handy little storage cubbies.

I'd be more concerned with making sure that the floor they stand on is not creating any uneven support, and I would put a sheet of plywood on top of the blocks. This isn't so much for support as it is to make it easier to see if you have a level surface. If the plywood is flat to start with, and if you find it wobbles corner to corner, that "twist" applied to the bottom of the tank is the kiss of death. A little bit of lean to one side, or back to front, is unsightly but not really dangerous; but that twisting force is bad. Check the mating surface of each block for bumps and casting blemishes, which can create these stresses but which can be easily chipped or knocked off to prevent the problem.

I don't bother much with concrete blocks anymore; using 2x4 and 2x6 lumber it is easy to construct a stand that is sufficiently strong, easy to level, and much less wasteful of undertank space. To my mind, the only real benefit of the blocks is that you can literally create a stand in the time that it takes to cut one piece of plywood to size and then stack the blocks up.

I only use the finest in fish tank cabinetry in my fish room because aesthetics make the room ? . The configuration you are suggesting will work and has been mentioned you do need to ensure that you are plumb. I built the wood platform because the glass tank is frameless and acrylic must be fully supported.
220g glass
140g acrylic

  • Like
Reactions: Galactik
I only use the finest in fish tank cabinetry in my fish room because aesthetics make the room ? . The configuration you are suggesting will work and has been mentioned you do need to ensure that you are plumb. I built the wood platform because the glass tank is frameless and acrylic must be fully supported.

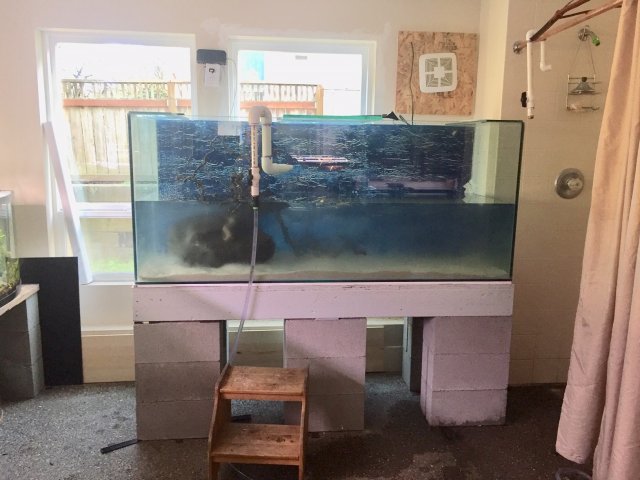

220g glass
View attachment 1494788

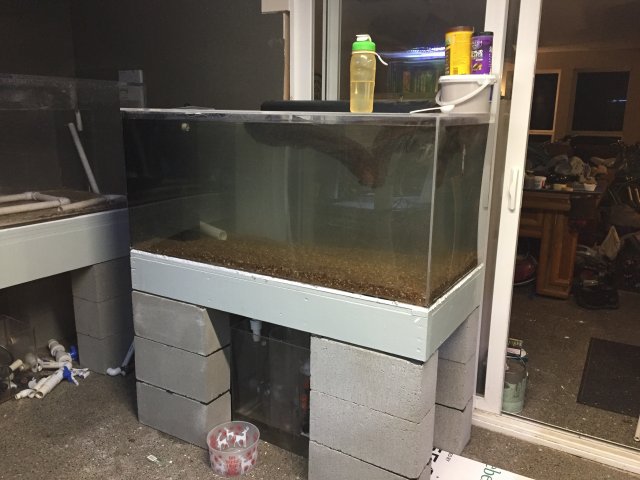

140g acrylic
View attachment 1494789



Wow, never saw a rimless that big before.

Me got questions!

Is the evaporation / humidity bad with the rimless?

Also, how long is your 140 gal acrylic (*eyes config*)

My only concern is access behind the blocks with an outlet...have you found this to be an issue?

AND...do you have a pic of those wood frames underneath? Do they just sit on the blocks or are they glued?

Q: Is the evaporation / humidity bad with the rimless?
A: I made lids from a broken acrylic tank

Q: How long is your 140 gal acrylic
A: 60in x 24in x 24in iirc

My only concern is access behind the blocks with an outlet...have you found this to be an issue? No, the 140g is a peninsula style with the overflow centered on the left side. Currently the 220g is running 2x AC110, canister filter, Ziss moving media filtern and a sponge filter.

Q: pic of those wood frames underneath?
A: I can take some after work

Q: Do they just sit on the blocks or are they glued?
A: just sitting
Here's the link to my fishroom thread. References to a 115 or a 120 really are about the 140g.

  • Like
Reactions: Galactik and FINWIN
FINWIN FINWIN
Rather than co opt this thread I started one explaining my builds.

  • Like
Reactions: FINWIN and Galactik
