300 gallon setup/sump build
- Thread starter jaws7777
- Start date
Looking forward to watching the progress. My 300 is very similar. 2 corner overflows. My sump is chambered though. I have 2 bulkeeads in ea. overflow. Large one is drain, smaller is really un used. My pump return is external to the left top of the tank into a spray bar. Heaters are in chamber before pump chamber. Have a .5 gph drip into top middle of tank. Drain through side of tank to drain outside. Sump cant overflow
Im looking forward to it too lol
Spoke to the builder today ad theres a chance i could have the tank next week. Im gonna start mocking up the plumbing tomorrow. I know it wont be set in stone but maybe it'll shave some time off the actual build.
The anticipation is killing me so last night i started messing around with the plumbing to get an idea of how it will all fit together and get a visual. At first i thought it would be a waste of time but kept find things i didnt like and changed some things around.

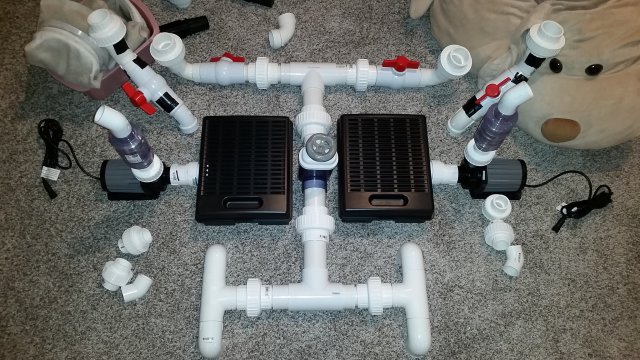

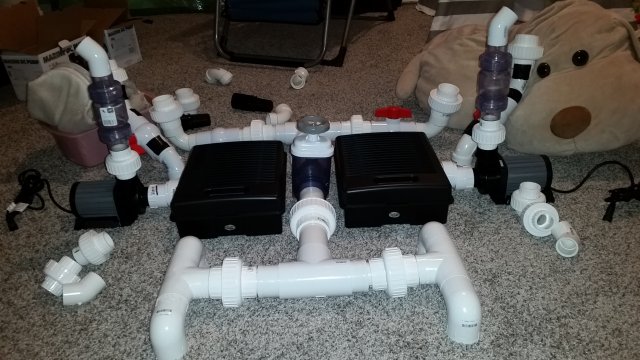

I cut some small sections of pipe so most of it would hold together hopefully all i have to do whwn the tank arrives is cut the correct measurements and put it back together. Let me know what you guys think.
I want to have unions coming right out of the bulkheads. Was thinking that getting both siphon drains to align with the 2 inch tee could be a hassle so i figure i could loosen the union twist the pipe and re tighten it. Ball valves before the tee then into the 2 inch gate back out to the two sock holders on each side.
The E drains again unions coming out of the bulk head to 45° elbows, to the balve valve, then into the sump.
The pumps and pond boxes with be rigjt next to each other covered in laundry bags/bio
Pump will be connected by a threaded x slip adapter to a union, then check valve and 45s up to another union at the bulkhead.

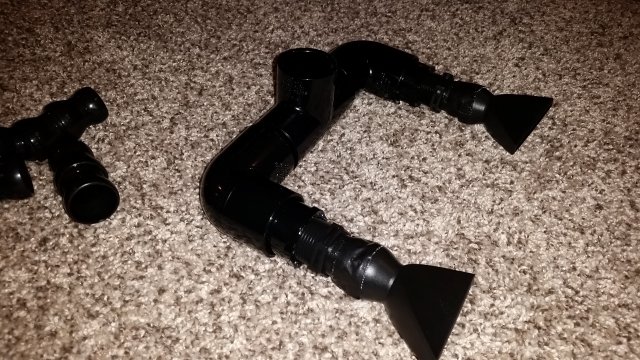

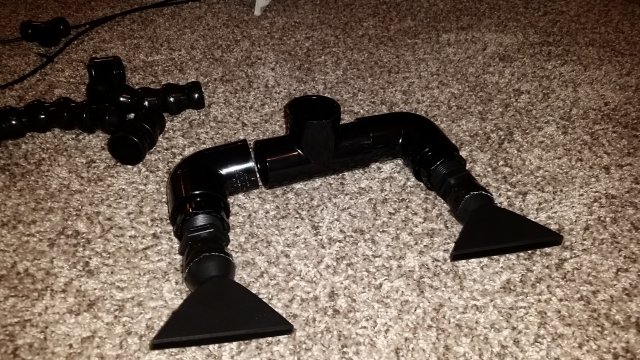

Came up with these to configurations for the returns. The returns are going come up through the overflow and back into the tank throug the top on the side panels of the tank towards the middle (ends of the tank). I like the 1st option. I can add a lenght of pipe and extend each end. And probably less likely a polypterus will hot one of the loc lines and move it. Just a tee out of the bulkhead connected to 90°s then to loc line nozzles
2nd option...blah
