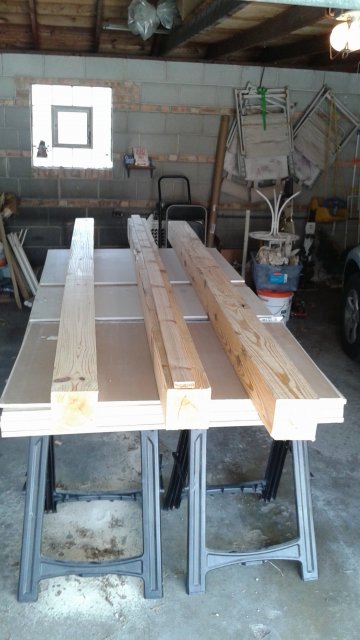

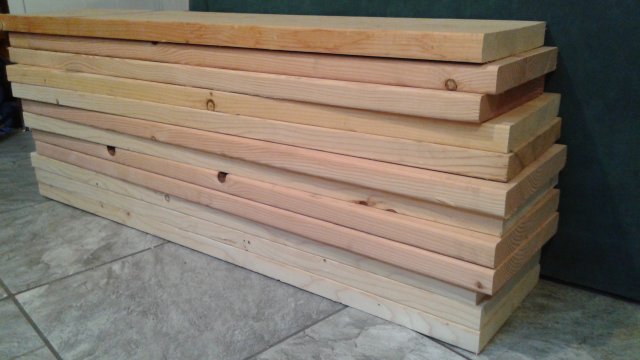

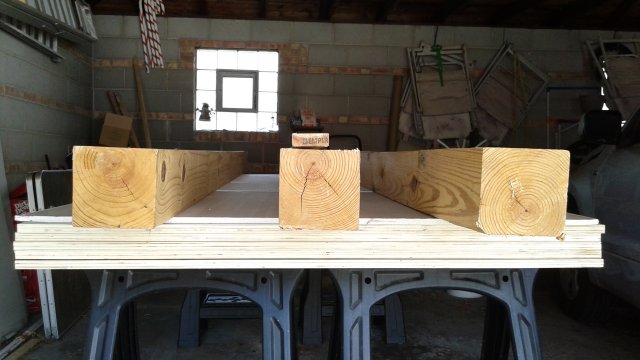

Here are some pics of the wood/supports for our plywood tank. The dimensions are 10 feet long x 48 inches wide by 38 inches tall.
950 Plywood/Acrylic Build on Wheels!
- Thread starter FisheadFrank
- Start date

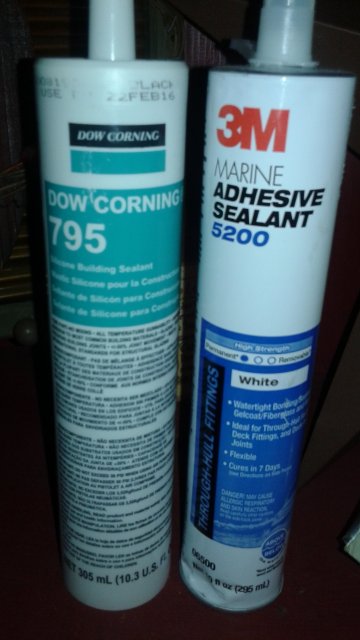

ended up going with the 3m as the adhesive for the acrylic. In your opinions which glue is better??

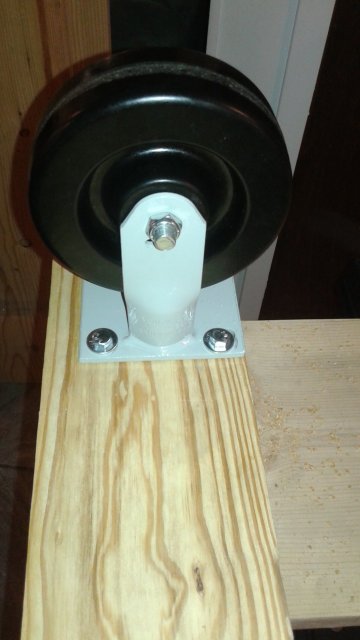

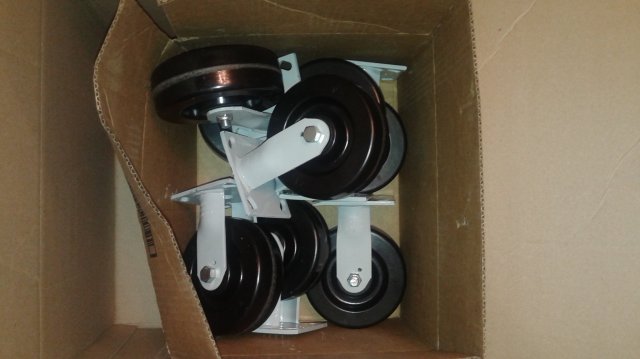

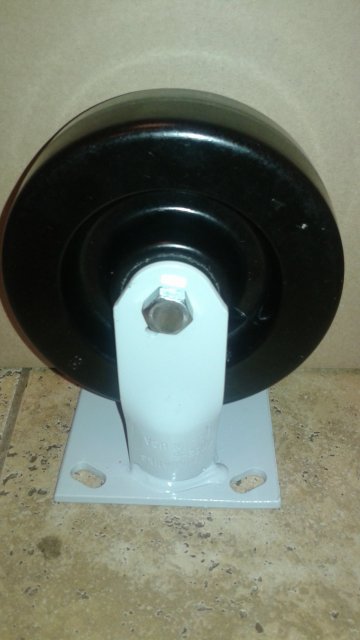

You are wanting to put that tank on wheels? Do you know what the weight capacity of those casters is? Do any of the casters swivel (otherwise you will only be able to go one direction)?
You are wanting to put a 950 gallon tank on wheels, which is going to end up being nearly 10,000lbs. Just to put that into perspective, that is near the same weight as two Suburbans. I really think you should think long and hard about putting wheels on the bottom of this tank.
You are wanting to put a 950 gallon tank on wheels, which is going to end up being nearly 10,000lbs. Just to put that into perspective, that is near the same weight as two Suburbans. I really think you should think long and hard about putting wheels on the bottom of this tank.
I'm going to give you some perspective on casters. I own a piano moving business and we use 5" casters on our dollies. Each caster is rated for 250lbs. I've had numerous casters spit bearings, shackles fold, wheels split, etc while moving concert size pianos (1000lbs+). I would suggest buying something heavier duty than the pictured set you have.

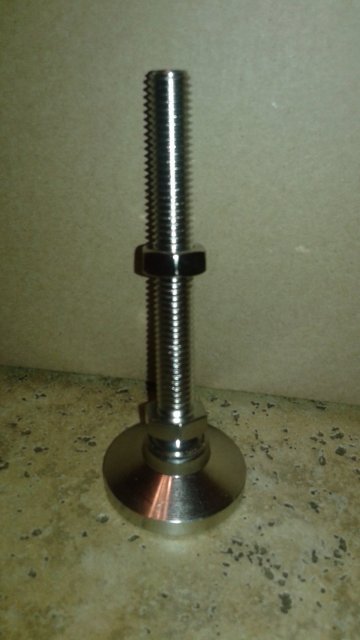

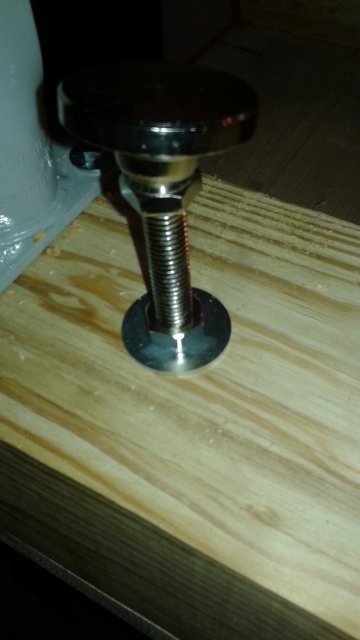

leveling bolts are being installed next to the front 3 wheels to level the tank if needed as well as if a wheel ever does give these are rated at 5000lbs each
The point of the casters is that there is a wall with a pair electrical outlets behind the tank and a window. If for whatever reason I need to get behind the tank, I can lower the water level in the tank, wheel it forward, and get behind it. The tank is actually only holding 800 gallons of water.
I wouldn't do it.. Why not just have enough space and just keep it in the one spot
This has disaster written all over it. I can see flexing involved that will cause leaks either instantly or eventually. Either way there is no way ever that I would do this.
