Let's talk drip/auto fill systems.

  • We are currently upgrading MFK. thanks! -neo

Randys

Polypterus
MFK Member
Nov 3, 2015
486
470
87
Traverse City, Michigan
I'm in the middle of a new 300 gallon build and have been planning on a drip system from the start. I'm fortunate in that my man cave is located in the lower level of my house which has a walk out. I will be able to run a drain line through the wall behind the tank (which is underground) and out into the woods behind my house. I just happened to have the a perfect setup for a nice free flowing drain.

I initially figured I would plumb a valve into the laundry tub cold water line and locate the other end in the sump by the return pump inlet. Since I have very hard well water I want to avoid cheap plastic pressure reducing valves, little tubing, and drip emitters. They would just plug up over time.

Then I started thinking about the advantages of using an irrigation control and making it automatic. That would give me two options: 1) use the automatic timer and push the water into the system (living with the dilution), or manually drain the tank down (I have a drain line at the bottom of the tank's back wall also) then refill it with a flip of a switch on the controller.

I'm thinking the timer option would give me a better water change than a constant drip even though there's still some dilution happening. Is this correct? And of course the manual option would give the best results, but man, think of how easy that water change would be! Open the valve on the back of the tank, drain it down, and then push a button on the controller to refill it. I'm using a stand pipe in the sump to determine the water level so I never need to worry about overfilling the tank.

The only problem is the water temperature. I would need to mix hot and cold if I wanted to use a controller. What type of valve would work best for this? What is everyone using? I did a quick search and came upon this one from Home Depot. It's for reducing the water temp from your hot water heater to reduce the chances of scalding. Would this work?


Anyone's input would sure be appreciated.

Thanks!

  • Like
Reactions: Matteus
I used to have my tank set up with a Toro sprinkler system valve and timer I ran that for years until I started using an Apex I have hard well water also. It’s plumbed just to the cold water It does 70gpd on a 750g aquarium. The temp only drops 2* so I didn’t have any concern with doing a mixing valve.

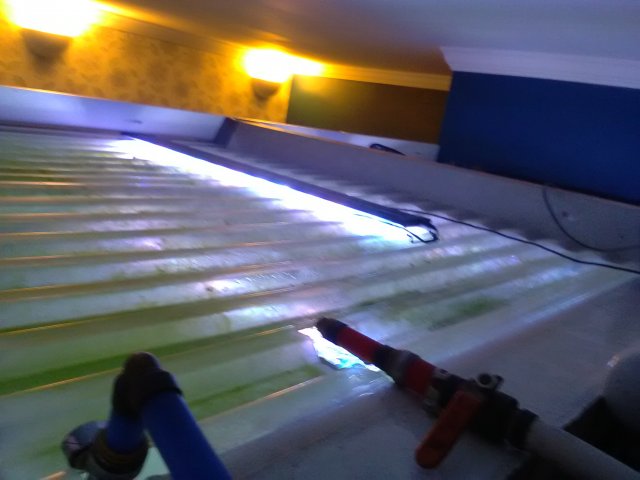

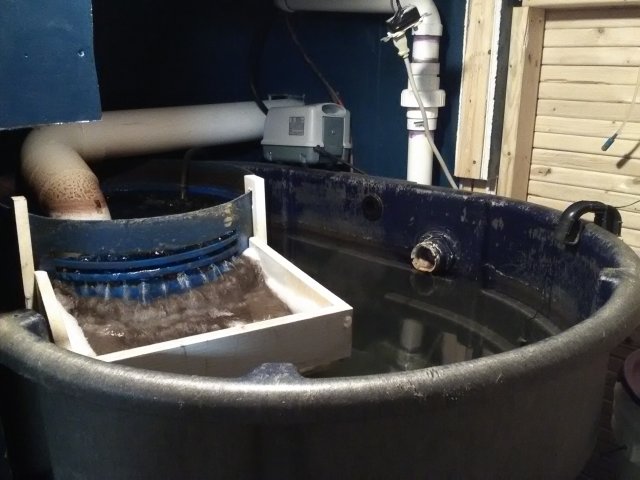

I run flood systems on my 1000gal and on my 140. I run a dedicated hot water line, and a dedicated cold line to the tank itself. With a 2" overflow line out the top of the sump to my sump well in my basement. I love this method, as it allows me to adjust/ control the temp at all times, winter or summer. I have a 75 gal hot water tank, and I will run an entire tank (or 2) in conjunction w the necessary flow of cold every night. (Opposite in summer) usually on Saturdays I will run 4-6 tanks worth throughout the day at my convienience. This changes about 125gals each time, and takes 10-15min each time. Super easy, over 100% a week, and I don't have to heat the tank all winter. Good luck.13658611365862

  • Love
Reactions: Matteus

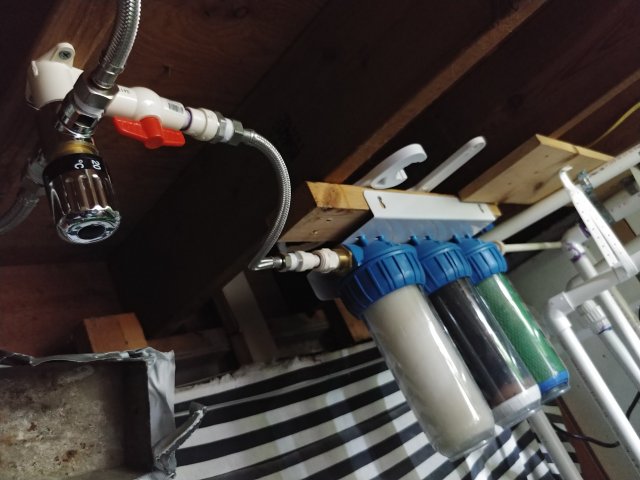

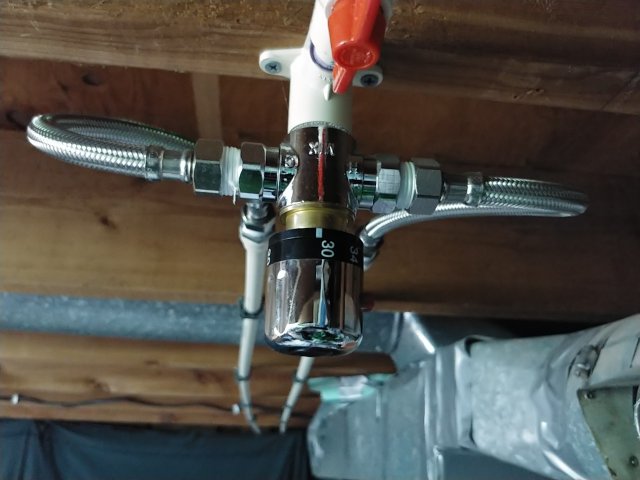

I use a mixing valve like that too. You just need to be careful to get one that goes into the range you need most are to high. I got one off Amazon I dont remember the brand but its in Celsius. I have it set at about 30C and upstairs at the tank water comes out at about 76f.

I run flood systems on my 1000gal and on my 140. I run a dedicated hot water line, and a dedicated cold line to the tank itself. With a 2" overflow line out the top of the sump to my sump well in my basement. I love this method, as it allows me to adjust/ control the temp at all times, winter or summer. I have a 75 gal hot water tank, and I will run an entire tank (or 2) in conjunction w the necessary flow of cold every night. (Opposite in summer) usually on Saturdays I will run 4-6 tanks worth throughout the day at my convienience. This changes about 125gals each time, and takes 10-15min each time. Super easy, over 100% a week, and I don't have to heat the tank all winter. Good luck.

That’s another good reason for using hot water!
It’s much cheaper to heat with my gas hot water heater than electric aquarium heaters.

  • Like
Reactions: Matteus
I use a mixing valve like that too. You just need to be careful to get one that goes into the range you need most are to high. I got one off Amazon I dont remember the brand but its in Celsius. I have it set at about 30C and upstairs at the tank water comes out at about 76f.

Do you use a mechanical or thermostatic mixing valve? So you use a thermometer also?

Thanks for the replies gang.
