55/ 75 / 90 Gallon Double Stack Steel Tube Build Blueprints

FishSwarm

Feeder Fish
MFK Member
Jun 7, 2018
14
11
3
38

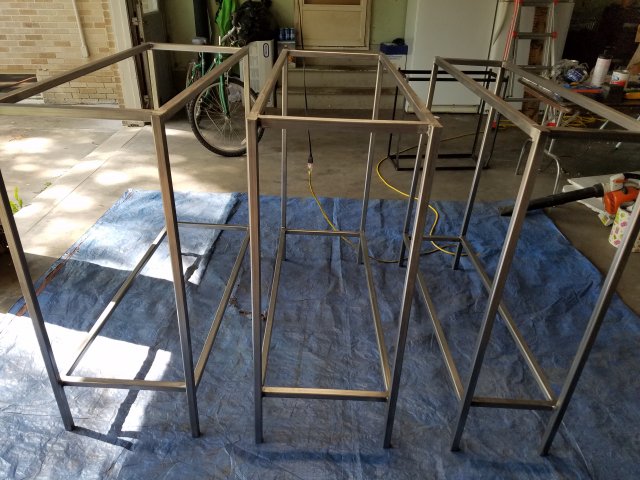

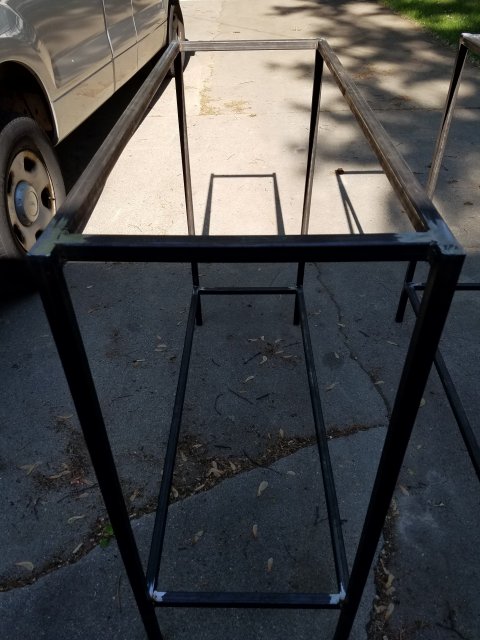

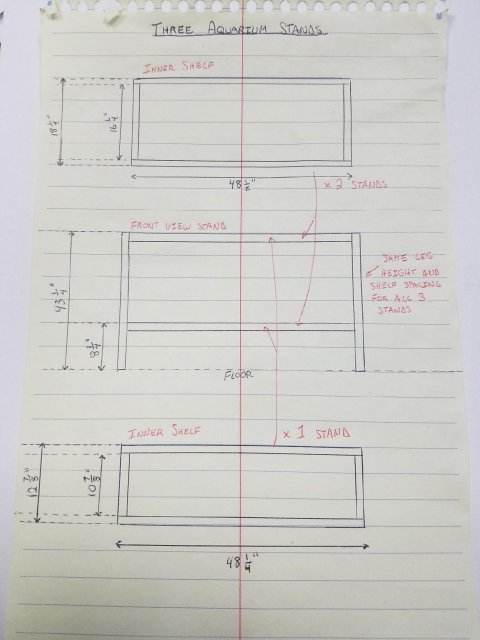

Just got my first custom stands back from the fab shop! Super excited and will be cleaning, light sanding, then painting them with truck bed liner this weekend. In hopes of helping someone that is in my same position I was, I thought I would take a little time and post my mock up blueprints that I gave to the shop. Warning: these are currently untested but I'm pretty confident they will hold up. I will post pics as I find time in the process of getting them fully setup. Enjoy!:)

20180510_083532_1527956253175.jpeg 20180608_174044.jpg 20180608_174809.jpg


FishSwarm

Feeder Fish
MFK Member
Jun 7, 2018
14
11
3
38
Thought I would give an update. I just got done with a very miserable experience. Removing the dirty coating on this square tube prior to applying the bedliner coating. I think the stuff is called mill scale? It took me hours and hours to get off. Washed first with dishsoap and hot water. Then cleaned with Acetone. Then tried a rustoleum grease remover. Sanded every inch with 60 and 100 grit with a jitterbug sander worked but took a ton of time. Also used sanding blocks which worked ok but that turned into a backbreaking job so I switched between jitterbug sander and blocks. I went through a lot of sandpaper and blocks! Does anyone know if I would have been ok leaving some of this coating on? Is there an easier way of getting that coating off? I plan on getting more stands in the future and don't want to go through that again! I still have quite a bit of cleaning to do to get the residual and dust off. I sure hope these turn out!

After 2.jpg


Backfromthedead

Potamotrygon
MFK Member
Jul 12, 2017
4,033
5,203
164
Fredericksburg va
Thought I would give an update. I just got done with a very miserable experience. Removing the dirty coating on this square tube prior to applying the bedliner coating. I think the stuff is called mill scale? It took me hours and hours to get off. Washed first with dishsoap and hot water. Then cleaned with Acetone. Then tried a rustoleum grease remover. Sanded every inch with 60 and 100 grit with a jitterbug sander worked but took a ton of time. Also used sanding blocks which worked ok but that turned into a backbreaking job so I switched between jitterbug sander and blocks. I went through a lot of sandpaper and blocks! Does anyone know if I would have been ok leaving some of this coating on? Is there an easier way of getting that coating off? I plan on getting more stands in the future and don't want to go through that again! I still have quite a bit of cleaning to do to get the residual and dust off. I sure hope these turn out!

View attachment 1319605
Yeah looks like the machine shop didnt think the metal was for display and left it machine rough.

Ideally you would want an electric or pneumatic powered grinder with varying grades of abrasive wheels or pads. What you were doing was grinding off metal and polishing, so it mustve taken quite an effort with just sandpaper!

What i would do is just ask the machine shop next time if they could smooth the edges out better. They have all the equipment there and with the proper tools that wouldve taken 10 minutes/stand.


pescado209

Plecostomus
MFK Member
Jul 29, 2017
319
233
51
looks nice. what size square tubing and wall thickness did they use?
now that I have a welder I want to build some stands instead of using wood.


FishSwarm

Feeder Fish
MFK Member
Jun 7, 2018
14
11
3
38
Yeah looks like the machine shop didnt think the metal was for display and left it machine rough.

Ideally you would want an electric or pneumatic powered grinder with varying grades of abrasive wheels or pads. What you were doing was grinding off metal and polishing, so it mustve taken quite an effort with just sandpaper!

What i would do is just ask the machine shop next time if they could smooth the edges out better. They have all the equipment there and with the proper tools that wouldve taken 10 minutes/stand.
Thanks Backfromthedead, I will definitely ask the shop if they can clean it up for me next time. Proper tools probably make all the difference!

  • Like
Reactions: Backfromthedead

FishSwarm

Feeder Fish
MFK Member
Jun 7, 2018
14
11
3
38
what size tank? I have a210 7x2x2
These 3 stands are for double 75 or 90 and double 55 or 60 gallon tanks. I have all the above sizes to put on them and will update as I can. I plan on making a similiar double 180 gallon stand out of 2" square tube 1/8" wall probably. That stand will be the same style but 6' length and 2' width. Same height dimensions.

  • Like
Reactions: pescado209

pescado209

Plecostomus
MFK Member
Jul 29, 2017
319
233
51
These 3 stands are for double 75 or 90 and double 55 or 60 gallon tanks. I have all the above sizes to put on them and will update as I can. I plan on making a similiar double 180 gallon stand out of 2" square tube 1/8" wall probably. That stand will be the same style but 6' length and 2' width. Same height dimensions.
sweet keep us updated please


jsodwi

Blue Tier VIP
MFK Member
Jul 9, 2005
2,741
689
425
south of heaven
You don’t have to sand the metal down. I use Upol degreaser from the auto body supply shop. Also just my opinion and I fabricate a lot of stands I am not a fan of having the 4 legs making contact with the ground. I like a full base that way there is more surface area and the weight is distributed better That’s a lot of weight on the 4 legs and on the floor in isolated locations. I’m sure you will be ok with the tank sizes you have and the 1” tubing but something to think about for larger setups. Post some pics when they are running. It’s gonna look nice.
