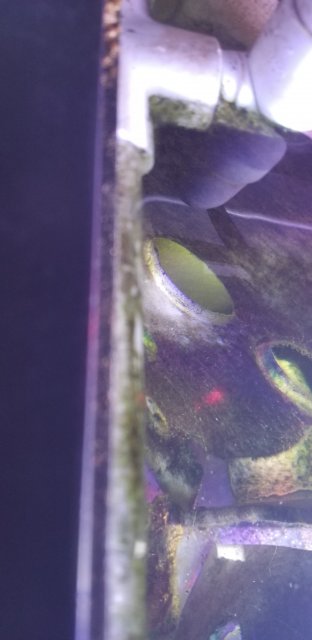

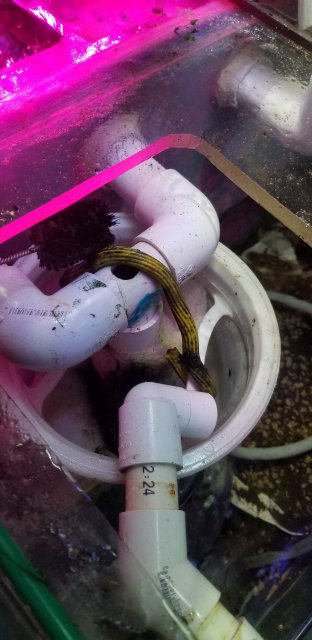

A 2" airlift sucks most of the heavy wastes over the corner overflow wier, into the sump.
My first stage is, a wedge wire sieve, " still under construction " $400.00 price tag....
So some times I will use an improvised 200 micron mesh, in the picture. When cleaning or flushing the coral heads...

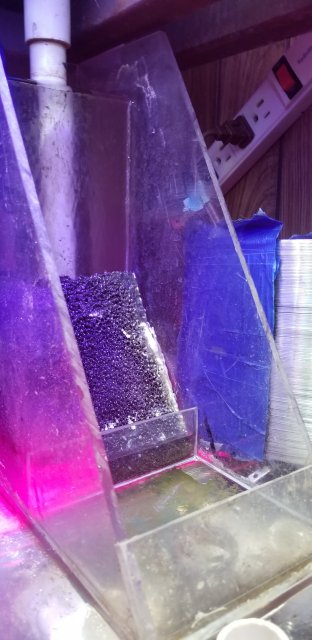

Typically I use a wedge of 1/8 hole very porous gutter foam, $5.00 48"×6" from Lowes.
This gets cleaned about once a week.

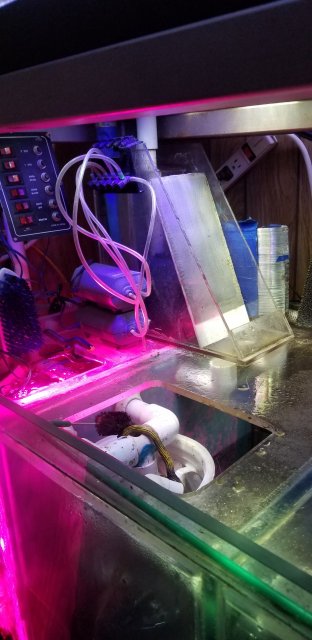

From there the water goes strait into a 24" x 16" upflow algea scrubber, with 60 watts to 100 watts of submerged lights.
My pump is mounted in my basement, yes I have 250 gallons of water on a second floor, lots of steel support.
In the basement I use 55 gallon drums, which cycles water on a closed loop at low flow, which I can isolate, dump and refill for water changes.
Then a final filter sock 7" x 16" with a 1" thick poly floss liner with a pvc coupler hot glued for a good seal. Which is inside a 200 micron nylon mesh 7x 16 sock. I can usually go 2 weeks on one filter sock. I have space for two, but one is sufficient.
I custom built my 90 gallon sump. The other half has grow out tanks, aka Jail, and a biochar media .
I have no substrate, just tiles that look like sand, and have 300 watts of liquid cooled LED. that grow alot of algea, the fish feed on.
It is also a coed tank, were the pecking order is sorted out among the fry that avoid the synod cats, and the current tank boss.
View attachment 1476968
View attachment 1476969
View attachment 1476970
