Building a 9'x25' pond

  • We are currently upgrading MFK. thanks! -neo
Thanks guys, I appreciate the kind comments. if you have suggestions I am open too. My neighbor had a good one about adding some slate to the front of the waterfall which I think I am going to give a try. I put in some long hours the last few days and think its really shaping up.

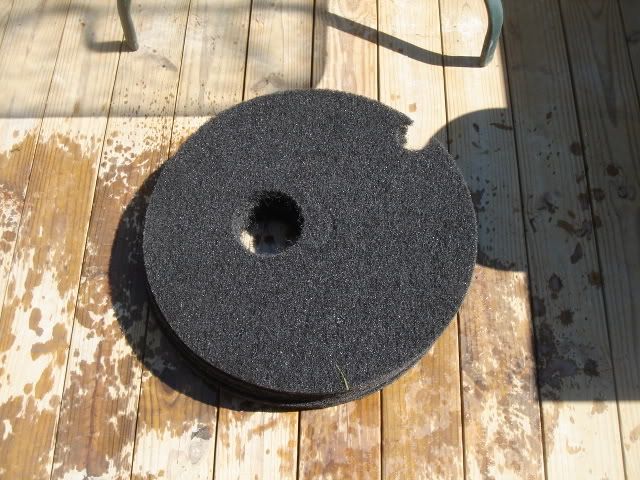

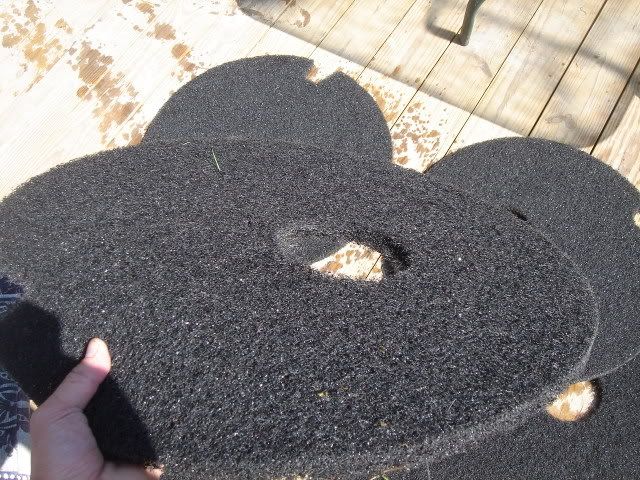

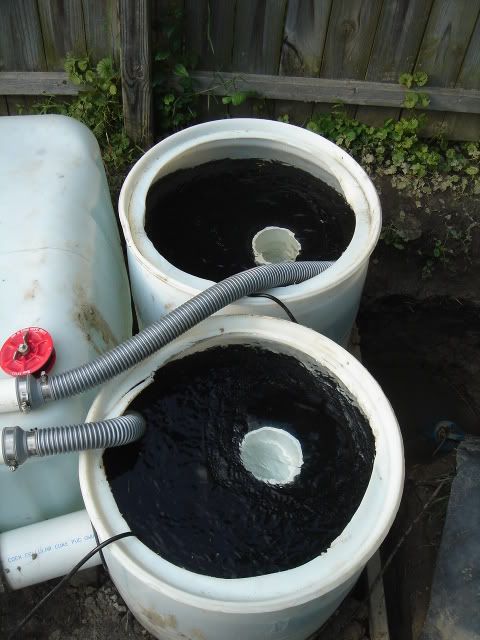

I had ordered 5 cases of 24" the course black floor stripping pads off ebay and they showed up last night. They should be pretty good for bio and catching debris before it moves on to the strapping. The barrels are 22" diameter so they fit nice and snug. I put a stack of 5 on top of the strapping in each barrel for now.







I had my first snafu this morning. I noticed the skimmer wasn't really pulling the top water in. I quickly saw the weir door was missing. I had taken the grate that holds it in off as I installed it and not bolted it back in yet. It floats but I can't find it anywhere in the pond or yard. I was worried it got sucked down the pipe so pulled the brushes and fernco fittings to check all of the piping. Nothing. Called the company and they assured me the door can't fit into the piping. My only guess is it came loose and one of my dogs caught it and burried it somewhere in the yard.??? I have a temp one I made until I can find it or order another.

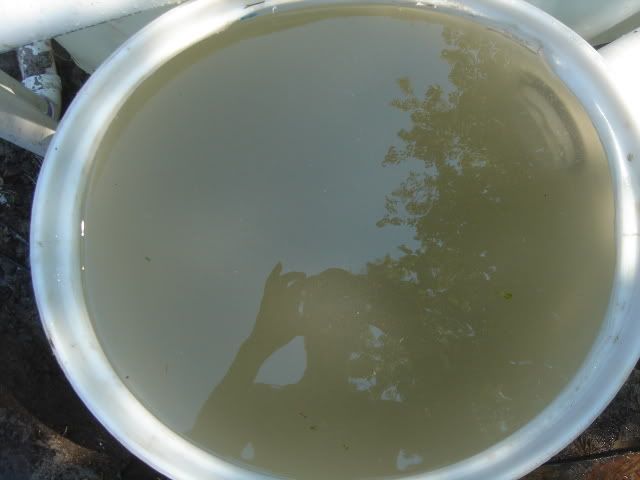

I didn't think to lower the water level in the brushes barrel before pulling them, but this is what they caught after 2 days. I gave them a few dunks and pulled pulled the drain, pretty easy.

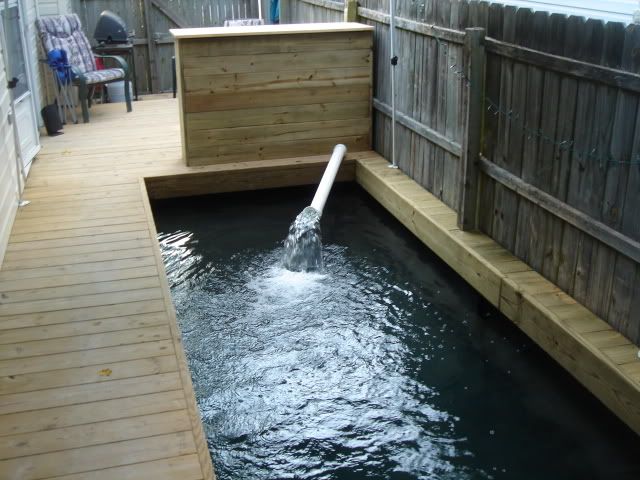

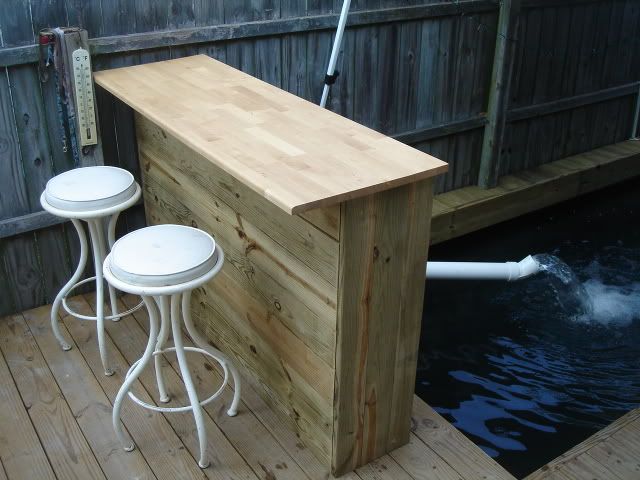

Got a little more work done on the TT/bar.

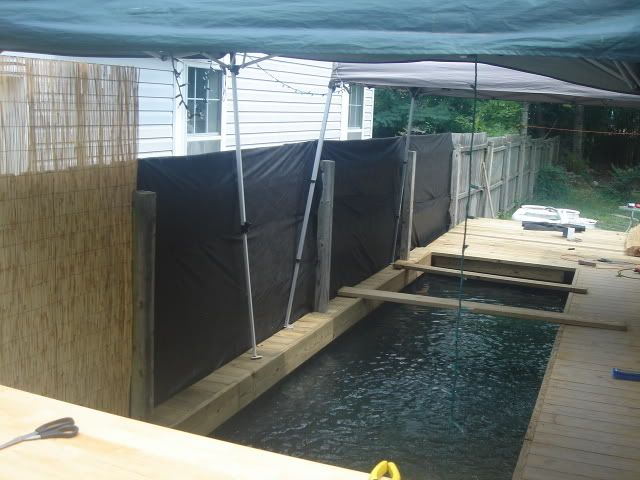

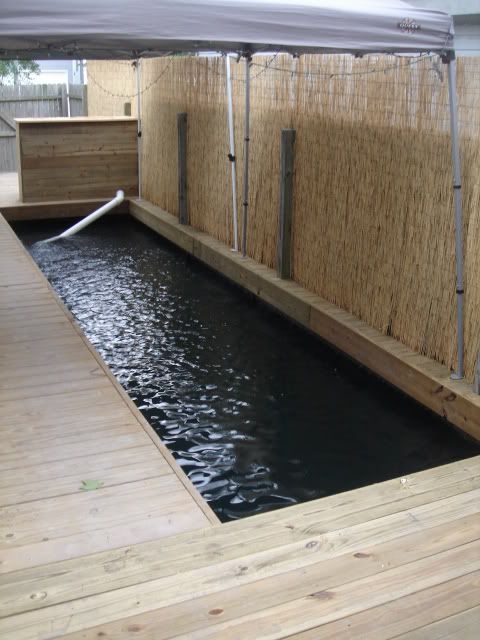

Most of the day was spent building the perimeter along the fence. Slow tedious work on planks spanning the pond, but well worth it.






You keep outdoing yourself!

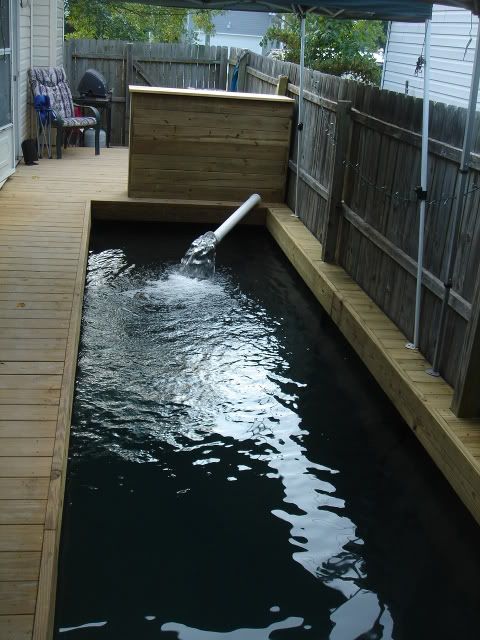

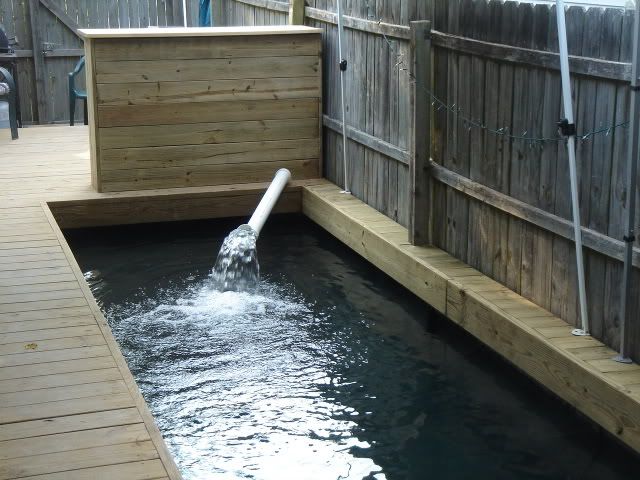

Why the upturn at the end of the white pipe water return to the pond? And is that how it will look in the end or are you planning something better?

The pipe is temporary. The bar is going to be moved forward and the return pipe is going straight up inside the bar to the top. The water will cascade down the inside over media and then pool inside and come out a 4' wide spillway. I am also thinking of covering the outside of the bar with slate tiles and using a spraybar so water will trickle down the front too.

What did you use to seal the pvc in the sides of the barrels ??? I remember seeing something like that advertised but cant remember where. Do they leak at all ???

They are uniseals. Quick, cheap, easy, and no leaks. I have some pics of them on page 6.

What do you calculate its capacity is - 10,000G?

Na, I am guessing its only about half of that. It ended up 10'x25', but only the first 12" has straight walls. So the first 12" is about 1800gallons. But when you take into account the shallow end and slope of all the walls I think it really cuts into the actual capacity.

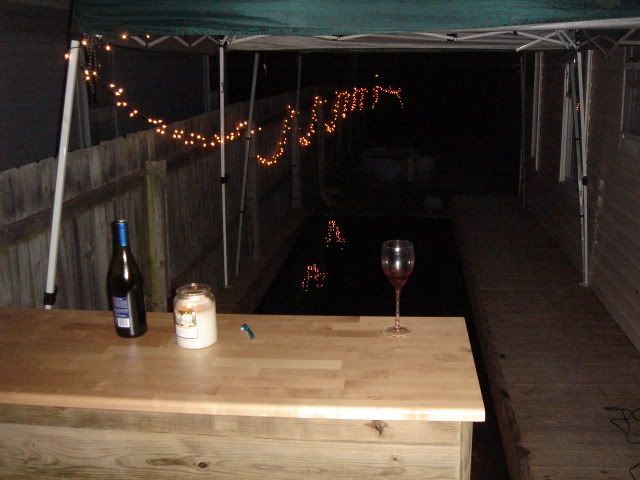

Relaxing waterside Sunday night. I since ran a strand of ropelight the length of the bridge along one of the joists that now adds a nice glow.

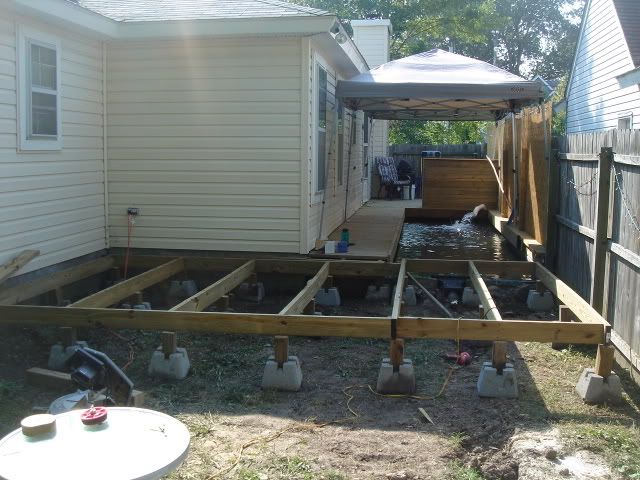

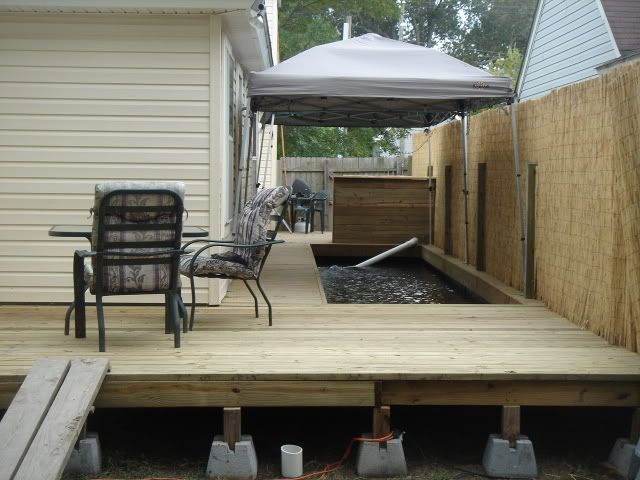

Framing out the first part of the lower deck

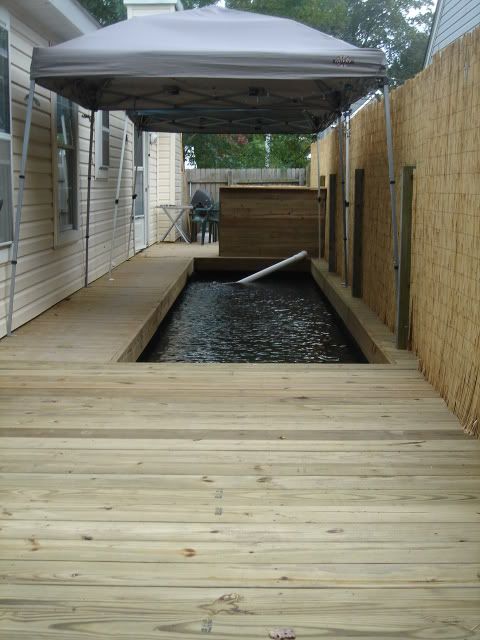

I lined the fence with landscape fabric then bamboo which gives a nice privacy effect to the area.









Now a couple more trips to lowes for the supplies to start the angled portion of the deck.

Amazing ! It gets better every time i have a look at this thread .

this is probably the best thread Ive read since i found this site, great job man, totally pro, keep up the updates, have you decided what your putting in it yet??


i got a pond too but nothing crazy like yours :drool:
