Drilled tank - Drain and Return Setup question

nmadsen4

Plecostomus
MFK Member
Dec 16, 2008
424
27
61
33
phoenix
I have a 240G. Acrylic with drilled drain and returns in both of the back corners. My question is, when I hook up the drain and return piping. Do I want the rubber seal on the inside of the tank or outside? I have all the bulkheads, rubber seal, tubing and whatever else.... I just dont know which side of the bulk head the rubber should go on.

Thanks for the help.


Iron Cat

Feeder Fish
MFK Member
Sep 7, 2015
65
10
8
rubber seal goes on the inside (water side)
tighten the fitting hand-tight then about a quarter turn more with a wrench/pliers.


predatorkeeper87

Potamotrygon
MFK Member
Sep 8, 2014
4,293
1,994
164
pennsylvania
seal ALWAYS flange side (inside tank). When I first got into sumps and all the craziness with them, I made that mistake. Talk about beating your head against a wall trying to figure out why your bulkheads are leaking...cramming yourself under your stand trying to tighten them just a biiiiit further haha.

  • Like
Reactions: Iron Cat

Iron Cat

Feeder Fish
MFK Member
Sep 7, 2015
65
10
8
seal ALWAYS flange side (inside tank). When I first got into sumps and all the craziness with them, I made that mistake. Talk about beating your head against a wall trying to figure out why your bulkheads are leaking...cramming yourself under your stand trying to tighten them just a biiiiit further haha.
I did the exact same thing on my first drilled tank, teflon tape, glue, tightened until the fitting cracked etc....a few temper tantrums and a lfs visit later I had new fittings and the correct knowledge.


predatorkeeper87

Potamotrygon
MFK Member
Sep 8, 2014
4,293
1,994
164
pennsylvania
I did the exact same thing on my first drilled tank, teflon tape, glue, tightened until the fitting cracked etc....a few temper tantrums and a lfs visit later I had new fittings and the correct knowledge.
haha yup same here, except I just got fed up, took them out...and happened to sit down on mfk and there was a sump thread up and sure enough someone asked this same question haha

  • Like
Reactions: Iron Cat

duanes

MFK Moderators
Staff member
Moderator
MFK Member
Jun 7, 2007
17,122
17,492
2,910
Isla Taboga Panama via Milwaukee
The rubber seal is normally put on the inside of the tank.

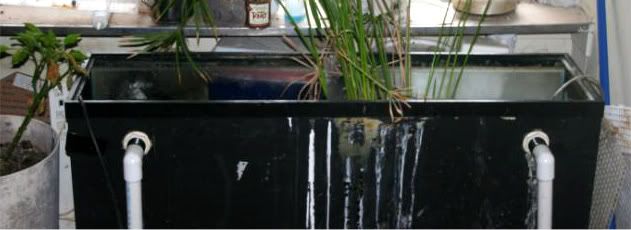

I have tanks with drill holes on both ends, and use both as drains to the sump, and have my returns hanging above the tank. This may seem redundant, and is
just a preference, but I figure if one drain gets plugged up (and has happened to me), the other takes up the slack, and the tank doesn't overflow onto the floor.
I also like returns to be above the water line to create as much surface agitation as possible to promote gas exchange.



nmadsen4

Plecostomus
MFK Member
Dec 16, 2008
424
27
61
33
phoenix
Thanks everyone! I'm glad I wasn't the only one that had this question. Luckily I asked before hand.... Last think I want is leaky bulkheads and a massive headache.

  • Like
Reactions: Iron Cat
