Interesting stuff here guys.

It shouldn’t be more than $20 but it’s peace of mind. Your looking for something to sandwich between the bulkhead flange and tank wall/hole. I had four of these cut to make union seals and it was $27. That’s no pilot hole, router and smooth cut. They do the work for you.

View attachment 1306731
What company is it that cuts them out for you ?

  • Like
Reactions: mrrobxc

Fish Tank Travis

Potamotrygon
MFK Member
Feb 28, 2016
3,277
2,157
164
36
Dayton, OH
Ok, I might be missing something here, but is there any reason why you can’t just use a 1” bulkhead and then use reducing slip bushings to reduce the size to 3/4”?

If the plumbing is already lined up, you could cut some of it out and use vinyl tubing to make up for the misalignment. I just don’t think I would trust that 3/4” bulkhead in a hole meant for a 1” bulkhead.

Also, I noticed a few pages back that you guys were talking about valves on the lines. I would definitely recommend putting valves on all of the lines between the tank and the sump. I think JK47 JK47 mentioned he does it for reasons of needing to do work on the lines. This is exactly why I did it on mine. I have a valve on all three of the drains and on both of my returns. If I didn’t, then I would have to drain about 1/4 of the tank before I could do any work on my drains or returns. With the way they are now, I can just close the valves and do all the work I want. It came in really handy when I first set it up because I changed a lot of stuff around before finaly finding a setup that worked how I wanted it to.


DN328

Potamotrygon
MFK Member
Aug 14, 2014
2,416
1,097
164
Fish Tank
Ok, I might be missing something here, but is there any reason why you can’t just use a 1” bulkhead and then use reducing slip bushings to reduce the size to 3/4”?.
I too thought this once I better understood what was going on. Also if you were to go with the acrylic washer idea, could you leave as one O piece rather than C? I must be missing a key point.

  • Like
Reactions: mrrobxc

JK47

Retired MFK Admin
MFK Member
Aug 4, 2008
11,112
3,478
2,555
Washington
I too thought this once I better understood what was going on. Also if you were to go with the acrylic washer idea, could you leave as one O piece rather than C? I must be missing a key point.
Left as an O he would have to remove the bulkhead to put it on. If he is going to do that he should swap out to a larger bulkhead. I thought he was trying to salvage an existing cemented bulkhead. I may be confused though.


mrrobxc

Bronze Tier VIP
MFK Member
Nov 29, 2012
4,540
5,543
599
SE PA
I’m torn. I like the washer idea but I don’t know that I’ll have enough piece of mind.

The other thought is cutting it all out, replacing all the bulkheads with new ones and putting a schedule 80 3/4” bulkhead on the bottom hole since they are thicker and take it from there. It’ll be a pain in the butt to do but I’ll sleep better at night.

Project delayed another week. Oh well.


mrrobxc

Bronze Tier VIP
MFK Member
Nov 29, 2012
4,540
5,543
599
SE PA
Just placed an order with BRS.

Decided to cut it out and redo with a schedule 80 bulkhead on the bottom hole, ABS kn the top two. I will use the manifold I just cut off as the template for the new one I’ll build. It will be a perfect fit.

Thanks again JK47 JK47 for the tutorial. Just figured it’s worth redoing. That way I can make a cleaner manifold too.

  • Like
Reactions: nzafi and JK47

jaws7777

Probation Member
Probation Member
Mar 1, 2014
17,773
20,943
740
White house 1600 Pennsylvania Ave NW, Washington
I ran into aa different issue but similar witht tank. I opted to rip out the bulkhead (cememnted) and re do it. Peace of mind is priceless

  • Like
Reactions: mrrobxc

mrrobxc

Bronze Tier VIP
MFK Member
Nov 29, 2012
4,540
5,543
599
SE PA
I ran into aa different issue but similar witht tank. I opted to rip out the bulkhead (cememnted) and re do it. Peace of mind is priceless
Agreed. It’ll be a pain but I think it’s worth it long term.


mrrobxc

Bronze Tier VIP
MFK Member
Nov 29, 2012
4,540
5,543
599
SE PA

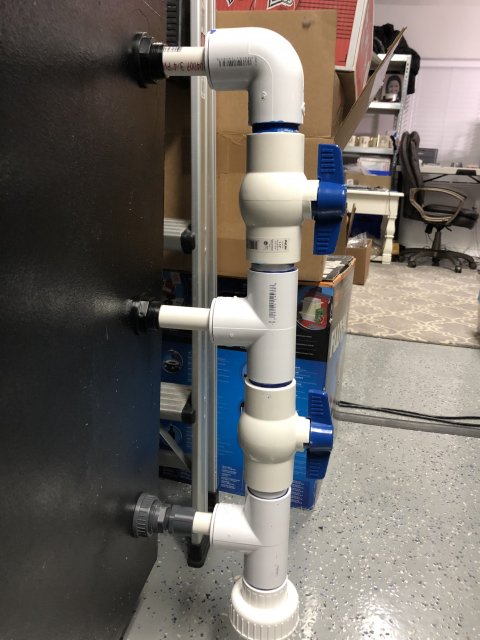

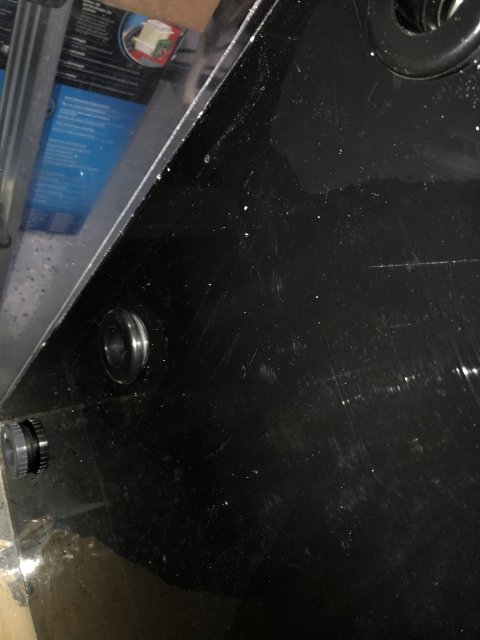

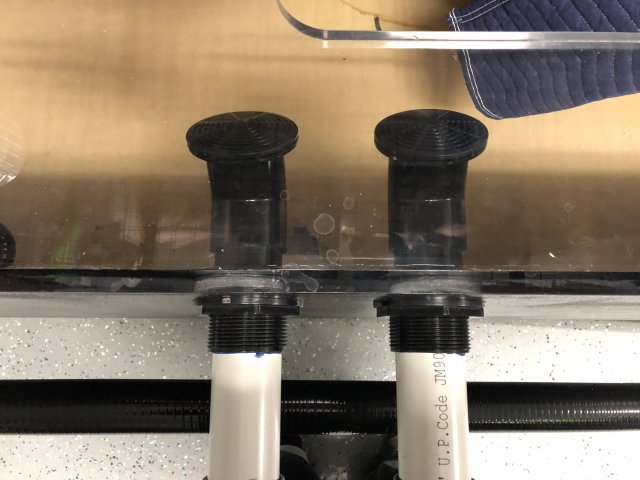

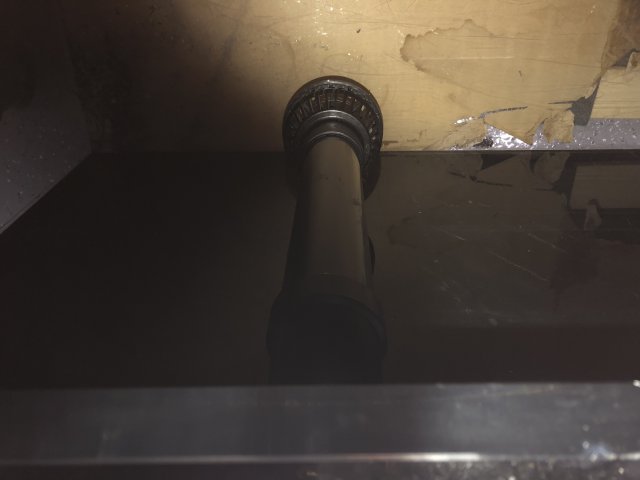

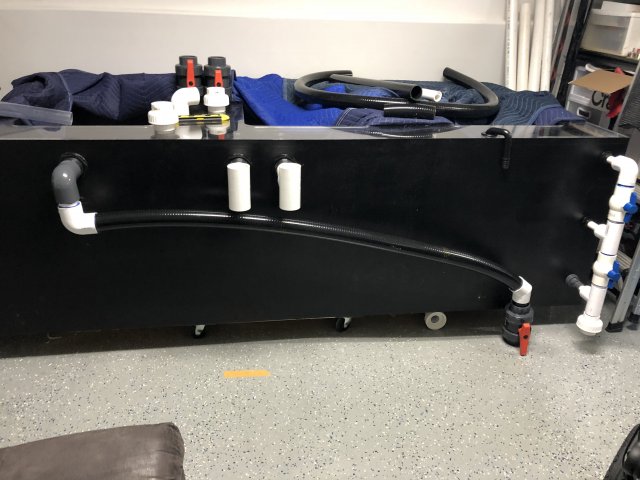

Schedule 80 3/4” bulkhead worked perfectly and the manifold looks much cleaner this time around.

Will be finishing the back piping for the sump, tighten up the bulkheads and then move on to painting the stand.
